Communication Board CB 1241, RS485 - 6ES7241-1CH30-1XB0

INR 1
DATASHEET
In stock

Description

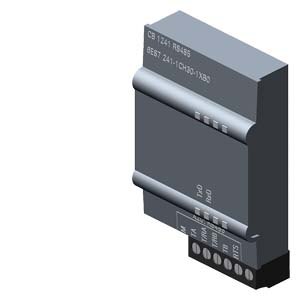

SIMATIC S7-1200, Communication Board CB 1241, RS485, terminal block, supports Freeport

Product type designation CB 1241 RS 485

Input current

from backplane bus 5 V DC, typ. 50 mA

Power loss

Power loss, typ. 1.5 W

Interfaces

Point-to-point connection

● Cable length, max. 1 000 m

Integrated protocol driver

— Freeport Yes

— ASCII Yes; Available as library function

— Modbus RTU master Yes

— Modbus RTU device Yes

— USS Yes; Available as library function

Protocols

Integrated protocols

Freeport

— Telegram length, max. 1 kbyte

— Bits per character 7 or 8

— Number of stop bits 1 (Standard), 2

— Parity No parity (standard); even, uneven, mark (parity bit always 1); space (parity bit always 0)

3964 (R)

— Telegram length, max. 1 kbyte

— Bits per character 7 or 8

— Number of stop bits 1 (Standard), 2

— Parity No parity (standard); even, uneven, mark (parity bit always 1); space (parity bit always 0)

Modbus RTU master

— Address area 1 through 49 999 (Standard Modbus addressing)

— max. number of devices 247; slave numbers 1 through 247, per MODBUS network segment maximum 32 devices, additional repeaters needed to expand the network to maximum configuration

Modbus RTU device

— Address area 1 through 49 999 (Standard Modbus addressing)

Interrupts/diagnostics/status information

Diagnostics function Yes

Degree and class of protection

IP degree of protection IP20

Standards, approvals, certificates

CE mark Yes

CSA approval Yes

UL approval Yes

cULus Yes

FM approval Yes

RCM (formerly C-TICK) Yes

KC approval Yes

Marine approval Yes

Ambient conditions

Free fall

● Fall height, max. 0.3 m; five times, in product package

Ambient temperature during operation

● min. -20 °C

● max. 60 °C

● horizontal installation, min. -20 °C

● horizontal installation, max. 60 °C

● vertical installation, min. -20 °C

● vertical installation, max. 50 °C

● permissible temperature change 5°C to 55°C, 3°C / minute

Ambient temperature during storage/transportation

● min. -40 °C

● max. 70 °C

Air pressure acc. to IEC 60068-2-13

● Operation, min. 795 hPa

● Operation, max. 1 080 hPa

● Storage/transport, min. 660 hPa

● Storage/transport, max. 1 080 hPa

Relative humidity

● Operation at 25 ℃ without condensation, max. 95 %

Mechanics/material

Enclosure material (front)

● Plastic Yes

Dimensions

Width 38 mm

Height 62 mm

Depth 21 mm

Weights

Weight, approx. 40 g
