S7-1200 G1 by siemens

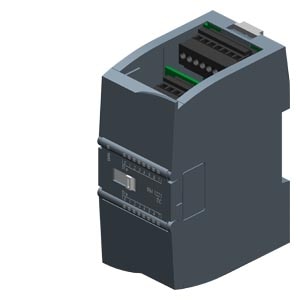

Digital Input SM 1221, 16DI, 24V DC-6ES7221-1BH32-0XB0

INR 1
Learn more
In stock

Description

SIMATIC S7-1200, Digital input SM 1221, 16 DI, 24 V DC, Sink/Source

General information

Product type designation SM 1221, DI 16x24 V DC

Supply voltage

Rated value (DC) 24 V

permissible range, lower limit (DC) 20.4 V

permissible range, upper limit (DC) 28.8 V

Input current

from backplane bus 5 V DC, max. 130 mA

Digital inputs

● from load voltage L+ (without load), max. 4 mA; per channel

Output voltage

Power supply to the transmitters

● present Yes

Power loss

Power loss, typ. 2.5 W

Digital inputs

Number of digital inputs 16

● in groups of 4

Input characteristic curve in accordance with IEC 61131, type 1 Yes

Number of simultaneously controllable inputs

all mounting positions

— up to 40 °C, max. 16

horizontal installation

— up to 40 °C, max. 16

— up to 50 °C, max. 16

vertical installation

— up to 40 °C, max. 16

Input voltage

● Rated value (DC) 24 V

● for signal “0” 5 V DC at 1 mA

● for signal “1” 15 V DC at 2.5 mA

Input current

● for signal “0”, max. (permissible quiescent current) 1 mA

● for signal “1”, min. 2.5 mA

● for signal “1”, typ. 4 mA

Input delay (for rated value of input voltage)

for standard inputs

— parameterizable Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four

for interrupt inputs

— parameterizable Yes

Cable length

● shielded, max. 500 m

● unshielded, max. 300 m

Interrupts/diagnostics/status information

Alarms

● Diagnostic alarm Yes

Diagnostics indication LED

● for status of the inputs Yes

Potential separation

Potential separation digital inputs

● between the channels, in groups of 4

Degree and class of protection

IP degree of protection IP20

Standards, approvals, certificates

CE mark Yes

CSA approval Yes

UL approval Yes

cULus Yes

FM approval Yes

RCM (formerly C-TICK) Yes

KC approval Yes

Marine approval Yes

Ecological footprint

● environmental product declaration Yes

Global warming potential

— global warming potential, (total) [CO2 eq] 123 kg

— global warming potential, (during production) [CO2 eq] 12.1 kg

— global warming potential, (during operation) [CO2 eq] 111 kg

— global warming potential, (after end of life cycle) [CO2 eq] -0.434 kg

Ambient conditions

Free fall

● Fall height, max. 0.3 m; five times, in product package

Ambient temperature during operation

● min. -20 °C

● max. 60 °C

● permissible temperature change 5°C to 55°C, 3°C / minute

Ambient temperature during storage/transportation

● min. -40 °C

● max. 70 °C

Air pressure acc. to IEC 60068-2-13

● Storage/transport, min. 660 hPa

● Storage/transport, max. 1 080 hPa

Relative humidity

● Operation at 25 ℃ without condensation, max. 95 %

Connection method

required front connector Yes

Mechanics/material

Enclosure material (front)

● plastic Yes

Dimensions

Width 45 mm

Height 100 mm

Depth 75 mm

Weights

Weight, approx. 210 g
