Description

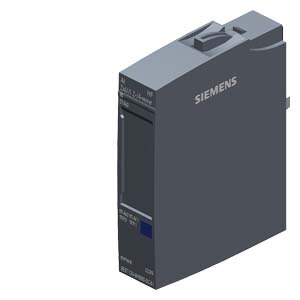

SIMATIC ET 200SP, Analog input module, AI 2x U/I 2-.4-wire High Feat., suitable for BU type A0, A1, Color code CC05, channel diagnostics, 16 bit, +/-0.1% General information Product type designation AI 2xU/I 2-/4-wire HF HW functional status From FS06 Firmware version ● FW update possible Yes usable BaseUnits BU type A0, A1 Color code for module-specific color-coded label CC03 Product function ● I&M data Yes; I&M0 to I&M3 ● Isochronous mode Yes; 250 µs ● Measuring range scalable No Engineering with ● STEP 7 TIA Portal configurable/integrated from version V13 ● STEP 7 configurable/integrated from version V5.5 / - ● PCS 7 configurable/integrated from version V8.1 SP1 ● PROFIBUS from GSD version/GSD revision One GSD file each, Revision 3 and 5 and higher ● PROFINET from GSD version/GSD revision GSDML V2.3 Operating mode ● Oversampling No ● MSI Yes CiR - Configuration in RUN Reparameterization possible in RUN Yes Calibration possible in RUN Yes Supply voltage Rated value (DC) 24 V permissible range, lower limit (DC) 19.2 V permissible range, upper limit (DC) 28.8 V Reverse polarity protection Yes Input current Current consumption (rated value) 39 mA; without sensor supply Encoder supply 24 V encoder supply ● 24 V Yes ● Short-circuit protection Yes ● Output current, max. 20 mA; max. 50 mA per channel for a duration < 10 s (two-wire) Additional 24 V encoder supply ● Short-circuit protection Yes; channel by channel ● Output current, max. 100 mA; max. 150 mA for a duration of < 10 s (four-wire) Power loss Power loss, typ. 0.95 W; without sensor supply Address area Address space per module ● Address space per module, max. 4 byte; + 4 byte for scaling of measured values, + 1 byte for QI information Hardware configuration Automatic encoding Yes ● Mechanical coding element Yes ● Type of mechanical coding element Type A Selection of BaseUnit for connection variants ● 2-wire connection BU type A0, A1 ● 4-wire connection BU type A0, A1 Analog inputs Number of analog inputs 2; Differential inputs ● For current measurement 2 ● For voltage measurement 2 permissible input voltage for voltage input (destruction limit), max. 30 V permissible input current for current input (destruction limit), max. 50 mA Analog input with oversampling No Standardization of measured values Yes Input ranges (rated values), voltages ● 0 to +10 V Yes; 15 bit — Input resistance (0 to 10 V) 75 kΩ ● 1 V to 5 V Yes; 15 bit — Input resistance (1 V to 5 V) 75 kΩ ● -10 V to +10 V Yes; 16 bit incl. sign — Input resistance (-10 V to +10 V) 75 kΩ ● -5 V to +5 V Yes; 16 bit incl. sign — Input resistance (-5 V to +5 V) 75 kΩ Input ranges (rated values), currents ● 0 to 20 mA Yes; 15 bit — Input resistance (0 to 20 mA) 130 Ω ● -20 mA to +20 mA Yes; 16 bit incl. sign — Input resistance (-20 mA to +20 mA) 130 Ω ● 4 mA to 20 mA Yes; 15 bit — Input resistance (4 mA to 20 mA) 130 Ω Cable length ● shielded, max. 1 000 m; 200 m for voltage measurement Analog value generation for the inputs Measurement principle Sigma Delta Integration and conversion time/resolution per channel ● Resolution with overrange (bit including sign), max. 16 bit ● Integration time, parameterizable Yes ● Integration time (ms) 67.5 / 22.5 / 18.75 / 10 / 5 / 2.5 / 1.25 / 0.625 ms ● Basic conversion time, including integration time (ms) 68.03 / 22.83 / 19.03 / 10.28 / 5.23 / 2.68 / 1.43 / 0.730 ms ● Interference voltage suppression for interference frequency f1 in Hz 16.6 / 50 / 60 / 300 / 600 / 1 200 / 2 400 / 4 800 ● Conversion time (per channel) 68.2 / 23 / 19.2 / 10.45 / 5.40 / 2.85 / 1.6 / 0.9 ms ● Basic execution time of the module (all channels released) 1 ms Smoothing of measured values ● Number of smoothing levels 6; none; 2-/4-/8-/16-/32-fold ● Parameterizable Yes Encoder Connection of signal encoders ● for voltage measurement Yes ● for current measurement as 2-wire transducer Yes — Burden of 2-wire transmitter, max. 650 Ω ● for current measurement as 4-wire transducer Yes Errors/accuracies Linearity error (relative to input range), (+/-) 0.01 % Temperature error (relative to input range), (+/-) 0.003 %/K Crosstalk between the inputs, min. -50 dB Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.01 % Operational error limit in overall temperature range ● Voltage, relative to input range, (+/-) 0.1 % ● Current, relative to input range, (+/-) 0.1 % Basic error limit (operational limit at 25 °C) ● Voltage, relative to input range, (+/-) 0.05 %; 0.1 % at SFU 4.8 kHz ● Current, relative to input range, (+/-) 0.05 %; 0.1 % at SFU 4.8 kHz Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency ● Common mode voltage, max. 35 V ● Common mode interference, min. 90 dB Isochronous mode Filtering and processing time (TCI), min. 800 µs Bus cycle time (TDP), min. 1 ms Jitter, max. 5 µs Interrupts/diagnostics/status information Diagnostics function Yes Alarms ● Diagnostic alarm Yes ● Limit value alarm Yes; two upper and two lower limit values in each case Diagnoses ● Monitoring the supply voltage Yes ● Wire break Yes; Measuring range 4 to 20 mA only ● short-circuit Yes; channel-by-channel, at 1 to 5 V or for short-circuit in encoder supply ● Group error Yes ● Overflow/Underflow Yes
