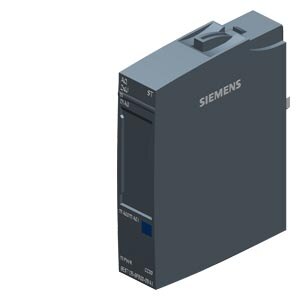

ET 200SP, AI 4x TC HS - 6ES7134-6JD00-0DA1

INR 1
DATASHEET
In stock

Description

SIMATIC ET 200SP, Analog input module, AI 4xTC High Speed, suitable for BU type A0, A1, Color code CC00, channel diagnostics, 16 bit, +/-0.1%

Product type designation AI 4xTC HS

HW functional status From FS02

Firmware version

● FW update possible Yes

usable BaseUnits BU type A0, A1

Color code for module-specific color-coded label CC00

Product function

● I&M data Yes; I&M0 to I&M3

● Isochronous mode No

● Measuring range scalable Yes

Engineering with

● STEP 7 TIA Portal configurable/integrated from version V15 with HSP 265/integrated as of V15.1

● STEP 7 configurable/integrated from version V5.5 SP3 or higher

● PROFIBUS from GSD version/GSD revision One GSD file each, Revision 3 and 5 and higher

● PROFINET from GSD version/GSD revision GSDML V2.3

Operating mode

● Oversampling No

● MSI Yes

CiR - Configuration in RUN

Reparameterization possible in RUN Yes

Calibration possible in RUN Yes

Supply voltage

Rated value (DC) 24 V

permissible range, lower limit (DC) 19.2 V

permissible range, upper limit (DC) 28.8 V

Reverse polarity protection Yes

Input current

Current consumption (rated value) 37 mA

Current consumption, max. 50 mA

Power loss

Power loss, typ. 0.9 W

Address area

Address space per module

● Address space per module, max. 16 byte; + 1 byte for QI information

Hardware configuration

Automatic encoding Yes

● Mechanical coding element Yes

● Type of mechanical coding element Type A

Selection of BaseUnit for connection variants

● 2-wire connection BU type A0, A1

Analog inputs

Number of analog inputs 4

permissible input voltage for voltage input (destruction limit), max. 30 V

Cycle time (all channels), min. 5 ms; Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels)

Technical unit for temperature measurement adjustable Yes; °C/°F/K

Input ranges (rated values), voltages

● -1 V to +1 V Yes; 16 bit incl. sign

— Input resistance (-1 V to +1 V) 1 MΩ

● -250 mV to +250 mV Yes; 16 bit incl. sign

— Input resistance (-250 mV to +250 mV) 1 MΩ

● -50 mV to +50 mV Yes; 16 bit incl. sign

— Input resistance (-50 mV to +50 mV) 1 MΩ

● -80 mV to +80 mV Yes; 16 bit incl. sign

— Input resistance (-80 mV to +80 mV) 1 MΩ

Input ranges (rated values), thermocouples

● type B Yes; 16 bit incl. sign

— Input resistance (Type B) 1 MΩ

● type C Yes; 16 bit incl. sign

— Input resistance (Type C) 1 MΩ

● Type E Yes; 16 bit incl. sign

— Input resistance (Type E) 1 MΩ

● Type J Yes; 16 bit incl. sign

— Input resistance (type J) 1 MΩ

● Type K Yes; 16 bit incl. sign

— Input resistance (Type K) 1 MΩ

● Type L Yes; 16 bit incl. sign

— Input resistance (Type L) 1 MΩ

● Type N Yes; 16 bit incl. sign

— Input resistance (Type N) 1 MΩ

● Type R Yes; 16 bit incl. sign

— Input resistance (Type R) 1 MΩ

● Type S Yes; 16 bit incl. sign

— Input resistance (Type S) 1 MΩ

● Type T Yes; 16 bit incl. sign

— Input resistance (Type T) 1 MΩ

● Type U Yes; 16 bit incl. sign

— Input resistance (Type U) 1 MΩ

● Type TXK/TXK(L) to GOST Yes; 16 bit incl. sign

— Input resistance (Type TXK/TXK(L) to GOST) 1 MΩ

Thermocouple (TC)

Temperature compensation

— Parameterizable Yes

— Reference channel of the module No

— internal comparison point Yes; with BaseUnit type A1

— Reference channel of the group Yes

— Number of reference channel groups 4; Group 0 to 3

— fixed reference temperature Yes

Cable length

● shielded, max. 200 m; 100 m for thermocouples

Analog value generation for the inputs

Measurement principle integrating (Sigma-Delta)

Integration and conversion time/resolution per channel

● Resolution with overrange (bit including sign), max. 16 bit

● Integration time, parameterizable Yes

● Basic conversion time, including integration time (ms)

— additional processing time for wire-break check 1 ms

● Interference voltage suppression for interference frequency f1 in Hz 16.6 / 50 / 60 Hz / off

● Conversion time (per channel) 180/60/50/1.25 ms

Smoothing of measured values

● Number of smoothing levels 4; None; 4/8/16 times

● Parameterizable Yes

● Step: None Yes

● Step: low Yes

● Step: Medium Yes

● Step: High Yes

Encoder

Connection of signal encoders

● for voltage measurement Yes

Errors/accuracies

Linearity error (relative to input range), (+/-) 0.01 %

Temperature error (relative to input range), (+/-) 0.005 %/K

Crosstalk between the inputs, min. -70 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.03 %

Operational error limit in overall temperature range

● Voltage, relative to input range, (+/-) 0.1 %; 0.3 % when SFU OFF

Basic error limit (operational limit at 25 °C)

● Voltage, relative to input range, (+/-) 0.05 %; 0.2 % when SFU OFF

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

● Series mode interference (peak value of interference < rated value of input range), min. 70 dB

● Common mode voltage, max. 60 V; DC

● Common mode interference, min. 90 dB

Interrupts/diagnostics/status information

Diagnostics function Yes

Alarms

● Diagnostic alarm Yes

● Limit value alarm Yes; two upper and two lower limit values in each case

Diagnoses

● Monitoring the supply voltage Yes

● Wire break Yes; channel by channel

● Group error Yes

● Overflow/Underflow Yes; channel by channel

Diagnostics indication LED

● Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED

● Channel status display Yes; green LED

● for channel diagnostics Yes; red LED

● for module diagnostics Yes; green/red LED

Potential separation

Potential separation channels

● between the channels No

● between the channels and backplane bus Yes

● between the channels and the power supply of the electronics Yes

Permissible potential difference

between the inputs (UCM) 60 V DC

Isolation

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates

Suitable for applications according to AMS 2750 Yes; Declaration of Conformity, see online support entry 109757262

Suitable for applications according to CQI-9 Yes; Based on AMS 2750 E

Ecological footprint

● environmental product declaration Yes

Global warming potential

— global warming potential, (total) [CO2 eq] 9.32 kg

— global warming potential, (during production) [CO2 eq] 4.97 kg

— global warming potential, (during operation) [CO2 eq] 4.79 kg

— global warming potential, (after end of life cycle) [CO2 eq] -0.449 kg
