ET 200SP AI Energy Meter RC ST-6ES7134-6PA21-0BU0

INR 1
DATA SHEET
In stock

Description

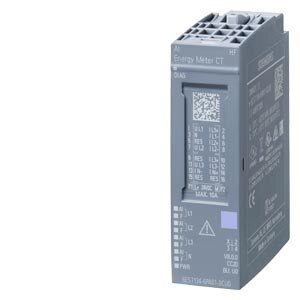

SIMATIC ET 200SP, analog input module, AI Energy Meter RC ST, for Rogowski coils or current/voltage transformer 333 mV, suitable for BU type U0, channel diagnostics

Product type designation AI Energy Meter RC ST

Firmware version V8.0

● FW update possible Yes

usable BaseUnits BU type U0

Color code for module-specific color-coded label CC20

Supported power supply systems TT, TN, IT

Product function

● Voltage measurement Yes

— without voltage transformer Yes

— with voltage transformer Yes

● Current measurement Yes; max. 3 + neutral conductor

— without current transformer No

— with current transformer No

— With Rogowski coil Yes

— With current-voltage-converter Yes; 333 mV interface

● Energy measurement Yes

● Frequency measurement Yes

● Power measurement Yes

● Active power measurement Yes

● Reactive power measurement Yes

● Power factor measurement Yes

● Active factor measurement Yes

● Reactive power compensation Yes

● Line analysis No

● I&M data Yes; I&M0 to I&M3

● Isochronous mode No

Engineering with

● STEP 7 TIA Portal configurable/integrated from version STEP 7 V16 or higher with HSP

● STEP 7 configurable/integrated from version Configurable via GSD file

● PROFIBUS from GSD version/GSD revision One GSD file each, Revision 3 and 5 and higher

● PROFINET from GSD version/GSD revision V2.3

Operating mode

● Switching between operating modes in RUN Yes; For module version 32 I/20 Q, it is possible to dynamically switch between 25 user data variants, 23 of which are pre-defined and 2 of which can be defined by the specific user

● Cyclic measured value access Yes

● Acyclic measured value access Yes

● Fixed measured value sets Yes

● Freely definable measured value sets Yes; For cyclic and acyclic measured value access

CiR - Configuration in RUN

Reparameterization possible in RUN Yes

Calibration possible in RUN Yes

Installation type/mounting

Mounting position any

Supply voltage

Rated value (DC) 24 V

permissible range, lower limit (DC) 19.2 V

permissible range, upper limit (DC) 28.8 V

Input current

Current consumption (rated value) 12.5 mA

Current consumption, max. 17 mA

Power loss

Power loss, typ. 400 mW; 3x 230 V AC

Address area

Address space per module

● Inputs 256 byte

● Outputs 20 byte

Hardware configuration

Automatic encoding Yes

● Mechanical coding element Yes

● Type of mechanical coding element type C

Selection of BaseUnit for connection variants

● 2-wire connection BU type U0

Time of day

Operating hours counter

● present Yes

Analog inputs

Cycle time (all channels), typ. 50 ms; Time for consistent update of all measured and calculated values (cyclic und acyclic data)

Cable length

● shielded, max. 200 m

● unshielded, max. 200 m

Analog value generation for the inputs

Sampling frequency, max. 2 048 kHz

Interrupts/diagnostics/status information

Alarms

● Diagnostic alarm Yes

● Limit value alarm Yes

● Hardware interrupt Yes; Monitoring of up to 16 freely selectable process values (exceeding or undershooting of value)

Diagnoses

● Supply voltage Yes

● Hardware interrupt lost Yes

● Parameter assignment error Yes

● Module fault Yes

● Channel not available Yes

● Overflow/Underflow Yes

● Overload current Yes

Diagnostics indication LED

● Monitoring of the supply voltage (PWR-LED) Yes

● Channel status display Yes; green LED

● for channel diagnostics Yes; red Fn LED

● for module diagnostics Yes; green/red DIAG LED

Integrated Functions

Measuring functions

● Measuring procedure for voltage measurement TRMS

● Measuring procedure for current measurement TRMS

● Type of measured value acquisition seamless

● Curve shape of voltage Sinusoidal or distorted

● Buffering of measured variables Yes

● Parameter length 128 byte

● Bandwidth of measured value acquisition 3.2 kHz; Harmonics: 63 / 50 Hz, 52 / 60 Hz

Measuring range

— Frequency measurement, min. 40 Hz

— Frequency measurement, max. 70 Hz

Measuring inputs for voltage

— Measurable line voltage between phase and neutral conductor 277 V

— Measurable line voltage between the line conductors 480 V

— Measurable line voltage between phase and neutral conductor, min. 3 V

— Measurable line voltage between phase and neutral conductor, max. 300 V

— Measurable line voltage between the line conductors, min. 6 V

— Measurable line voltage between the line conductors, max. 519 V

— Internal resistance line conductor and neutral conductor 1.5 MΩ

— Power consumption per phase 60 mW; 300 V AC

— Impulse voltage resistance 1,2/50µs 2.5 kV

— Overvoltage category CAT II according to IEC 61010 Part 1

Measuring inputs for current (Rog. or I/U converter)

— Measurable current at AC, max. 424 mV

— Continuous voltage, maximum permissible 2 V

— Rated value, short-time withstand voltage restricted to 1 s 30 V

— Input resistance 120 kΩ

— Zero point suppression Yes; 0 ... 20%, referred to the nominal current

Accuracy class according to IEC 61557-12

— Measured variable voltage 0,2

— Measured variable current 0,2

— Measured variable apparent power 0.5

— Measured variable active power 0.5

— Measured variable reactive power 1

— Measured variable power factor 0.5

— Measured variable active energy 0.5

— Measured variable reactive energy 1

— Measured variable neutral current 0,2

— Measured variable phase angle ±0.5 °; not covered by IEC 61557-12

— Measured variable frequency 0.05; only valid for the permissible voltage measuring range

Potential separation

Potential separation channels

● between the channels No

● between the channels and backplane bus Yes

● Between the channels and load voltage L+ Yes; Including FE

Isolation

Isolation tested with Between channels and backplane bus, 24 V supply: Routine test, 1 920 V AC, 2 s; between backplane bus and 24 V supply: Type test, 707 V DC

Standards, approvals, certificates

Ecological footprint

● environmental product declaration Yes

Global warming potential

— global warming potential, (total) [CO2 eq] 9.32 kg

— global warming potential, (during production) [CO2 eq] 4.97 kg

— global warming potential, (during operation) [CO2 eq] 4.79 kg

— global warming potential, (after end of life cycle) [CO2 eq]
