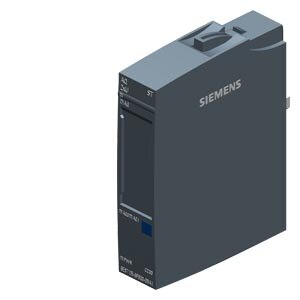

ET 200SP, AQ 2xU Standard, PU 1 - 6ES7135-6FB00-0BA1

INR 1
DATASHEET
In stock

Description

SIMATIC ET 200SP, Analog output module, AQ 2xU Standard, Pack quantity: 1 unit, suitable for BU type A0, A1, Color code CC00, Module diagnostics, 16 bit

General information

Product type designation AQ 2xU ST

HW functional status from FS21

Firmware version V1.0.3

● FW update possible Yes

usable BaseUnits BU type A0, A1

Color code for module-specific color-coded label CC00

Product function

● I&M data Yes; I&M0 to I&M3

● Isochronous mode No

● Output range scalable No

Engineering with

● STEP 7 TIA Portal configurable/integrated from version V13 SP1 / -

● STEP 7 configurable/integrated from version V5.5 SP3 / -

● PROFIBUS from GSD version/GSD revision GSD Revision 5

● PROFINET from GSD version/GSD revision GSDML V2.3

Operating mode

● Oversampling No

● MSO No

CiR - Configuration in RUN

Reparameterization possible in RUN No

Calibration possible in RUN No

Supply voltage

Rated value (DC) 24 V

permissible range, lower limit (DC) 19.2 V

permissible range, upper limit (DC) 28.8 V

Reverse polarity protection Yes

Input current

Current consumption, max. 80 mA

Power loss

Power loss, typ. 1 W

Address area

Address space per module

● Address space per module, max. 4 byte; + 1 byte for QI information

Hardware configuration

Automatic encoding Yes

● Mechanical coding element Yes

● Type of mechanical coding element Type A

Analog outputs

Number of analog outputs 2

Voltage output, short-circuit current, max. 45 mA

Cycle time (all channels), min. 1 ms

Analog output with oversampling No

Output ranges, voltage

● 0 to 10 V Yes; 15 bit

● 1 V to 5 V Yes; 13 bit

● -5 V to +5 V Yes; 15 bit incl. sign

● -10 V to +10 V Yes; 16 bit incl. sign

Connection of actuators

● for voltage output two-wire connection Yes

● for voltage output four-wire connection No

Load impedance (in rated range of output)

● with voltage outputs, min. 2 kΩ

● with voltage outputs, capacitive load, max. 1 µF

Destruction limits against externally applied voltages and currents

● Voltages at the outputs 30 V

Cable length

● shielded, max. 200 m

Analog value generation for the outputs

Integration and conversion time/resolution per channel

● Resolution with overrange (bit including sign), max. 16 bit

Settling time

● for resistive load 0.1 ms

● for capacitive load 1 ms

Errors/accuracies

Linearity error (relative to output range), (+/-) 0.03 %

Temperature error (relative to output range), (+/-) 0.005 %/K

Crosstalk between the outputs, min. -50 dB

Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) 0.05 %

Operational error limit in overall temperature range

● Voltage, relative to output range, (+/-) 0.5 %

● Current, relative to output range, (+/-) 0.5 %

Basic error limit (operational limit at 25 °C)

● Voltage, relative to output range, (+/-) 0.3 %

● Current, relative to output range, (+/-) 0.3 %

Interrupts/diagnostics/status information

Diagnostics function Yes

Substitute values connectable Yes

Alarms

● Diagnostic alarm Yes

Diagnoses

● Monitoring the supply voltage Yes

● Short-circuit Yes; module-wise

● Group error Yes

● Overflow/Underflow Yes; module-wise

Diagnostics indication LED

● Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED

● Channel status display Yes; green LED

● for channel diagnostics No

● for module diagnostics Yes; green/red DIAG LED

Potential separation

Potential separation channels

● between the channels No

● between the channels and backplane bus Yes

● between the channels and the power supply of the electronics Yes

Isolation

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates

Ecological footprint

● environmental product declaration Yes

Global warming potential

— global warming potential, (total) [CO2 eq] 28.6 kg

— global warming potential, (during production) [CO2 eq] 5.33 kg

— global warming potential, (during operation) [CO2 eq] 23.6 kg

— global warming potential, (after end of life cycle) [CO2 eq] -0.343 kg

Ambient conditions

Ambient temperature during operation

● horizontal installation, min. -30 °C; < 0 °C as of FS03

● horizontal installation, max. 60 °C

● vertical installation, min. -30 °C; < 0 °C as of FS03

● vertical installation, max. 50 °C

Altitude during operation relating to sea level

● Installation altitude above sea level, max. 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual

Absolute humidity

● dew point, min. -60 °C; suitable for dry room applications
