SIMATIC S7-200 SMART G2, communications module CM 01, RS485/232 supports Freeport

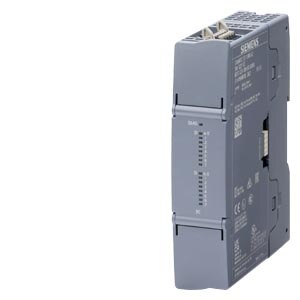

SIMATIC S7-200 SMART G2, slim analog input EM AI08, 8 AI, 8xAI thermocouples Product type designation EM AT08, AI TC 8x16 bit Supply voltage Type of supply voltage none Input current from backplane bus 5 V DC, max. 105 mA; For 5 V DC from CPU module Analog inputs Number of analog inputs 8 Input ranges ● Voltage Yes; ±80 mV ● Current No ● Thermocouple Yes ● Resistance thermometer No ● Resistance No Cable length ● shielded, max. 100 m; to the sensor Analog outputs Number of analog outputs 0 Analog value generation for the inputs Measurement principle Sigma Delta Integration and conversion time/resolution per channel ● Resolution with overrange (bit including sign), max. 16 bit Smoothing of measured values ● Step: None Yes ● Step: low Yes ● Step: Medium Yes ● Step: High Yes Interrupts/diagnostics/status information Diagnoses ● Wire break Yes

SIMATIC S7-200 SMART G2, slim analog I/O SM AM06, 4 AI/2 AO, 0..10 V, 0..5 V, 0/4..20 mA, +/-5 V, +/-2.5 V, 12-bit resolution or 4...20 mA, +/-10 V 11-bit resolution Product type designation EM AM06, AI 4x12 bit, AQ 2x11 bit CiR - Configuration in RUN Reparameterization possible in RUN No Supply voltage Type of supply voltage DC Rated value (DC) 24 V permissible range, lower limit (DC) 20.4 V permissible range, upper limit (DC) 28.8 V Input current Current consumption, typ. 50 mA; no load Current consumption, max. 90 mA; 20 mA load per channel from backplane bus 5 V DC, max. 60 mA Power loss Power loss, typ. 1.5 W Analog inputs Number of analog inputs 4; Current or voltage differential inputs Input ranges ● Voltage Yes; ±10V, ±5V, ±2.5V ● Current Yes; 0 to 20 mA ● Thermocouple No ● Resistance thermometer No ● Resistance No
