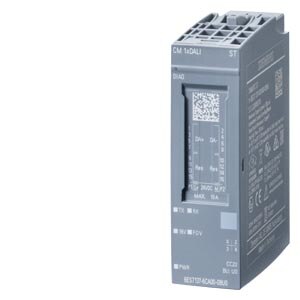

ET 200SP, CM 1x DALI - 6ES7137-6CA00-0BU0

INR 1
DATASHEET
In stock

Description

SIMATIC ET 200SP, CM 1x DALI, DALI master module, integrated DALI bus power supply 160 mA, up to 64 DALI control gears, 63 control devices, color code CC20, suitable for BU type U0

Product type designation CM 1xDALI

Firmware version

● FW update possible Yes

usable BaseUnits BU type U0

Color code for module-specific color-coded label CC20

Product function

● I&M data Yes; I&M0 to I&M3

● Isochronous mode No

Engineering with

● STEP 7 TIA Portal configurable/integrated from version STEP 7 V15.1 or higher

● PROFIBUS from GSD version/GSD revision GSD Revision 5

● PROFINET from GSD version/GSD revision GSDML V2.34

Supply voltage

Rated value (DC) 24 V

permissible range, lower limit (DC) 19.2 V

permissible range, upper limit (DC) 28.8 V

Reverse polarity protection Yes

Input current

Current consumption (rated value) 163 mA

Current consumption, typ. 92 mA

Current consumption, max. 250 mA

Power loss

Power loss, typ. 1.7 W

Address area

Address space per module

● Address space per module, max. 16 byte

● Inputs 16 byte

● Outputs 16 byte

Interface types

DALI

● Integrated power supply Yes

— Supply current, min. 160 mA

— Supply current, max. 250 mA

— Can be switched off Yes

● Cable length, max. 300 m

Protocols

DALI

● Standard according to DALI DALI V2 Multi-Master

Supported operating devices

— Fluorescent lamps (device type 0) Yes

— Emergency lighting with single battery (device type 1) Yes

— Discharge lamps (device type 2) Yes

— Low-voltage halogen lamps (device type 3) Yes

— Incandescent lamps (device type 4) Yes

— Direct voltage (device type 5) Yes

— LED modules (device type 6) Yes

— Switching function (device type 7) Yes

— Color control (device type 8) Yes

— Further operating devices Yes; general device type

Supported input devices

— Pushbuttons Yes

— Absolute input devices Yes

— Presence detector Yes

— Light sensor Yes

— Further input devices Yes; general device type

Specifications

....
