ET 200SP, IM 155-6 MF HF - 6ES7155-6MU01-0CN0

INR 1
DATASHEET
In stock

Description

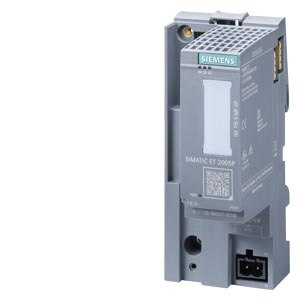

SIMATIC ET 200SP MultiFieldbus interface module IM 155-6 MF High Feature, PN IO, Ethernet IP, Modbus TCP, max. 64 I/O modules and 16 ET 200AL modules, S2 redundancy, multi hot swap, 0.25 ms, isochronous mode, optional PN strain relief PN security class 1 including server module (6ES7193-6PA00-0AA0)

Product type designation IM 155-6 MF HF

Firmware version V6.4.1

● FW update possible Yes

Vendor identification (VendorID) 002AH

Device identifier (DeviceID) 0313H

Manufacturer ID according to ODVA (VendorID) 0x04E3

Device ID according to ODVA (Product code) 0FA2H

Product function

● I&M data Yes; I&M0 to I&M4

● Module swapping during operation (hot swapping) Yes; Multi-hot swapping

● Isochronous mode Yes

● IRT Yes

● Tool changer Yes; Docking station and docking unit

● Local coupling, IO data Yes

— Number of coupling modules 6; 1x output + max. 5x input

Engineering with

● STEP 7 TIA Portal configurable/integrated from version V20

● STEP 7 configurable/integrated from version V5.7 SP3

● PROFINET from GSD version/GSD revision GSDML V2.45

● Multi Fieldbus Configuration Tool (MFCT) V1.5.2.0 or higher

Configuration control

via dataset Yes

Supply voltage

Rated value (DC) 24 V

permissible range, lower limit (DC) 19.2 V

permissible range, upper limit (DC) 28.8 V

Reverse polarity protection Yes

Short-circuit protection Yes

Mains buffering

● Mains/voltage failure stored energy time 10 ms

Input current

Current consumption (rated value) 550 mA

Current consumption, max. 650 mA

Inrush current, max. 1 A

I²t 0.05 A²·s

Power loss

Power loss, typ. 2 W

Address area

Address space per module

● Address space per module, max. 288 byte; For input and output data respectively

Address space per station

● Address space per station, max. 1 440 byte

Specifications

.....
