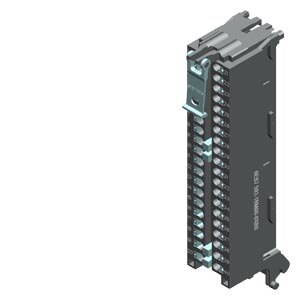

SIMATIC S7-1500, Front connector in push-in design, 40-pole, for 35 mm wide modules incl. 4 potential bridges and cable ties Connection I/O signals ● Connection method Push-in terminal ● Number of lines per connection 1; or combination of 2 conductors of up to 1.5 mm² (total) in a shared ferrule Conductor cross-section in mm² — Connectable cable cross-sections for massive cables, min. 0.25 mm² — Connectable cable cross-sections for massive cables, min. 1.5 mm² — Connectable cable cross-sections for flexible cables without end sleeve, min. 0.25 mm² — Connectable cable cross-sections for flexible cables without end sleeve, max. 1.5 mm² — Connectable cable cross-sections for flexible cables with end sleeve, min. 0.25 mm² — Connectable cable cross-sections for flexible cables with end sleeve, max. 1.5 mm² Conductor cross-section acc. to AWG — Connectable cable cross-sections for massive cables, min. 24 — Connectable cable cross-sections for massive cables, min. 16 — Connectable cable cross-sections for flexible cables without end sleeve, min. 24 — Connectable cable cross-sections for flexible cables without end sleeve, max. 16 — Connectable cable cross-sections for flexible cables with end sleeve, min. 24 — Connectable cable cross-sections for flexible cables with end sleeve, max. 16 Wire end processing — Stripped length of cables, min. 8 mm — Stripped length of cables, max. 11 mm — End sleeve acc. to DIN 46228 without plastic sleeve Form A, 10 mm long — End sleeve acc. to DIN 46228 with plastic sleeve Form E, 8 mm and 10 mm long Mounting — Tool Screwdriver, conical design, 3 mm to 3.5 mm Dimensions Width 29.8 mm Height 130.5 mm Depth 46 mm Weights Weight, approx. 123 g Approvals / Certificates
