Description

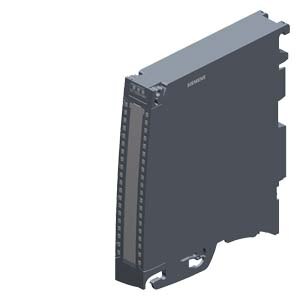

SIMATIC S7-1500 Analog input module AI 4xU/I/RTD/TC ST, 16 bit resolution, Accuracy 0.3%, 4 channels in groups of 4; 2 channels for RTD measurement; Common mode voltage 10 V; Diagnostics; Hardware interrupts; Delivery including push-in front connector, infeed element, shield bracket, and shield terminal General information Product type designation AI 4xU/I/RTD/TC ST HW functional status from FS01 Firmware version V1.0.0 ● FW update possible Yes Product function ● I&M data Yes; I&M0 to I&M3 ● Isochronous mode No ● Prioritized startup No ● Measuring range scalable No ● Scalable measured values No ● Adjustment of measuring range No Engineering with ● STEP 7 TIA Portal configurable/integrated from version V13 / V13.0.2 ● STEP 7 configurable/integrated from version V5.5 SP3 / - ● PROFIBUS from GSD version/GSD revision V1.0 / V5.1 ● PROFINET from GSD version/GSD revision V2.3 / - Operating mode ● Oversampling No ● MSI Yes CiR - Configuration in RUN Reparameterization possible in RUN Yes Calibration possible in RUN Yes Supply voltage Rated value (DC) 24 V permissible range, lower limit (DC) 19.2 V permissible range, upper limit (DC) 28.8 V Reverse polarity protection Yes Input current Current consumption, max. 165 mA; with 19.2 V supply Encoder supply 24 V encoder supply ● Short-circuit protection Yes ● Output current, max. 20 mA; Max. 47 mA per channel for a duration < 10 s Power Power consumption from the backplane bus 0.7 W Power loss Power loss, typ. 2.3 W Address area Address space per module ● Inputs 8 byte ● Outputs 0 byte Analog inputs Number of analog inputs 4 ● For current measurement 4 ● For voltage measurement 4 ● For resistance/resistance thermometer measurement 2 ● For thermocouple measurement 4 permissible input voltage for voltage input (destruction limit), max. 28.8 V permissible input current for current input (destruction limit), max. 40 mA Constant measurement current for resistance-type transmitter, typ. 150 Ohm, 300 Ohm, 600 Ohm, Pt100, Pt200, Ni100: 1.25 mA; 6 000 Ohm, Pt500, Pt1000, Ni1000, LG-Ni1000: 0.625 mA; PTC: 0.472 mA Technical unit for temperature measurement adjustable Yes; °C/°F/K Analog input with oversampling No Standardization of measured values No Input ranges (rated values), voltages ● 0 to +5 V No ● 0 to +10 V No ● 1 V to 5 V Yes — Input resistance (1 V to 5 V) 100 kΩ ● -1 V to +1 V Yes — Input resistance (-1 V to +1 V) 10 MΩ ● -10 V to +10 V Yes — Input resistance (-10 V to +10 V) 100 kΩ ● -2.5 V to +2.5 V Yes — Input resistance (-2.5 V to +2.5 V) 10 MΩ ● -25 mV to +25 mV No ● -250 mV to +250 mV Yes — Input resistance (-250 mV to +250 mV) 10 MΩ ● -5 V to +5 V Yes — Input resistance (-5 V to +5 V) 100 kΩ ● -50 mV to +50 mV Yes — Input resistance (-50 mV to +50 mV) 10 MΩ ● -500 mV to +500 mV Yes — Input resistance (-500 mV to +500 mV) 10 MΩ ● -80 mV to +80 mV Yes — Input resistance (-80 mV to +80 mV) 10 MΩ Input ranges (rated values), currents ● 0 to 20 mA Yes — Input resistance (0 to 20 mA) 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC ● -20 mA to +20 mA Yes — Input resistance (-20 mA to +20 mA) 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC ● 4 mA to 20 mA Yes — Input resistance (4 mA to 20 mA) 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC Input ranges (rated values), thermocouples ● type B Yes — Input resistance (Type B) 10 MΩ ● type C No ● Type E Yes — Input resistance (Type E) 10 MΩ ● Type J Yes — Input resistance (type J) 10 MΩ ● Type K Yes — Input resistance (Type K) 10 MΩ ● Type L No ● Type N Yes — Input resistance (Type N) 10 MΩ ● Type R Yes — Input resistance (Type R) 10 MΩ ● Type S Yes — Input resistance (Type S) 10 MΩ ● Type T Yes — Input resistance (Type T) 10 MΩ ● Type U No ● Type TXK/TXK(L) to GOST No Input ranges (rated values), resistance thermometer ● Cu 10 No ● Cu 10 according to GOST No ● Cu 50 No ● Cu 50 according to GOST No ● Cu 100 No ● Cu 100 according to GOST No ● Ni 10 No ● Ni 10 according to GOST No ● Ni 100 Yes; Standard/climate — Input resistance (Ni 100) 10 MΩ ● Ni 100 according to GOST No ● Ni 1000 Yes; Standard/climate — Input resistance (Ni 1000) 10 MΩ ● Ni 1000 according to GOST No ● LG-Ni 1000 Yes; Standard/climate — Input resistance (LG-Ni 1000) 10 MΩ ● Ni 120 No ● Ni 120 according to GOST No ● Ni 200 No ● Ni 200 according to GOST No ● Ni 500 No ● Ni 500 according to GOST No ● Pt 10 No ● Pt 10 according to GOST No ● Pt 50 No ● Pt 50 according to GOST No ● Pt 100 Yes; Standard/climate — Input resistance (Pt 100) 10 MΩ ● Pt 100 according to GOST No ● Pt 1000 Yes; Standard/climate — Input resistance (Pt 1000) 10 MΩ ● Pt 1000 according to GOST No ● Pt 200 Yes; Standard/climate — Input resistance (Pt 200) 10 MΩ ● Pt 200 according to GOST No ● Pt 500 Yes; Standard/climate — Input resistance (Pt 500) 10 MΩ ● Pt 500 according to GOST No Input ranges (rated values), resistors ● 0 to 150 ohms Yes — Input resistance (0 to 150 ohms) 10 MΩ ● 0 to 300 ohms Yes — Input resistance (0 to 300 ohms) 10 MΩ ● 0 to 600 ohms Yes — Input resistance (0 to 600 ohms) 10 MΩ ● 0 to 3000 ohms No ● 0 to 6000 ohms Yes — Input resistance (0 to 6000 ohms) 10 MΩ ● PTC Yes — Input resistance (PTC) 10 MΩ Thermocouple (TC) Temperature compensation — Parameterizable Yes — internal temperature compensation Yes — external temperature compensation via RTD Yes — Compensation for 0 °C reference point temperature Yes; fixed value can be set — Reference channel of the module No Cable length ● shielded, max.
