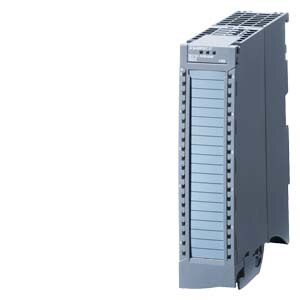

S7-1500, AI 8xU/I/RTD/TC ST-6ES7531-7KF00-0AB0

INR 1
Learn more
In stock

Description

SIMATIC S7-1500 analog input module AI 8xU/I/RTD/TC ST, 16 bit resolution, accuracy 0.3%, 8 channels in groups of 8; 4 channels for RTD measurement, common mode voltage 10 V; Diagnostics; Hardware interrupts; Delivery including infeed element, shield bracket and shield terminal: Front connector (screw terminals or push-in) to be ordered separately

General information

Product type designation AI 8xU/I/RTD/TC ST

HW functional status FS04

Firmware version V2.0.0

● FW update possible Yes

Product function

● I&M data Yes; I&M0 to I&M3

● Isochronous mode No

● Prioritized startup No

● Measuring range scalable No

● Scalable measured values No

● Adjustment of measuring range No

Engineering with

● STEP 7 TIA Portal configurable/integrated from version V12 / V12

● STEP 7 configurable/integrated from version V5.5 SP3 / -

● PROFIBUS from GSD version/GSD revision V1.0 / V5.1

● PROFINET from GSD version/GSD revision V2.3 / -

Operating mode

● Oversampling No

● MSI Yes

CiR - Configuration in RUN

Reparameterization possible in RUN Yes

Calibration possible in RUN Yes

Supply voltage

Rated value (DC) 24 V

permissible range, lower limit (DC) 19.2 V

permissible range, upper limit (DC) 28.8 V

Reverse polarity protection Yes

Input current

Current consumption, max. 255 mA; with 19.2 V supply

Encoder supply

24 V encoder supply

● Short-circuit protection Yes

● Output current, max. 20 mA; Max. 47 mA per channel for a duration < 10 s

Power

Power consumption from the backplane bus 0.7 W

Power loss

Power loss, typ. 2.7 W

Address area

Address space per module

● Inputs 16 byte

● Outputs 0 byte

Analog inputs

Number of analog inputs 8

● For current measurement 8

● For voltage measurement 8

● For resistance/resistance thermometer measurement 4

● For thermocouple measurement 8

permissible input voltage for voltage input (destruction limit), max. 28.8 V

permissible input current for current input (destruction limit), max. 40 mA

Constant measurement current for resistance-type transmitter, typ. 150 Ohm, 300 Ohm, 600 Ohm, Pt100, Pt200, Ni100: 1.25 mA; 6 000 Ohm, Pt500, Pt1000, Ni1000, LG-Ni1000: 0.625 mA; PTC: 0.472 mA

Technical unit for temperature measurement adjustable Yes; °C/°F/K

Analog input with oversampling No

Standardization of measured values No

Input ranges (rated values), voltages

● 0 to +5 V No

● 0 to +10 V No

● 1 V to 5 V Yes

— Input resistance (1 V to 5 V) 100 kΩ

● -1 V to +1 V Yes

— Input resistance (-1 V to +1 V) 10 MΩ

● -10 V to +10 V Yes

— Input resistance (-10 V to +10 V) 100 kΩ

● -2.5 V to +2.5 V Yes

— Input resistance (-2.5 V to +2.5 V) 10 MΩ

● -25 mV to +25 mV No

● -250 mV to +250 mV Yes

— Input resistance (-250 mV to +250 mV) 10 MΩ

● -5 V to +5 V Yes

— Input resistance (-5 V to +5 V) 100 kΩ

● -50 mV to +50 mV Yes

— Input resistance (-50 mV to +50 mV) 10 MΩ

● -500 mV to +500 mV Yes

— Input resistance (-500 mV to +500 mV) 10 MΩ

● -80 mV to +80 mV Yes

— Input resistance (-80 mV to +80 mV) 10 MΩ

Input ranges (rated values), currents

● 0 to 20 mA Yes

— Input resistance (0 to 20 mA) 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC

● -20 mA to +20 mA Yes

— Input resistance (-20 mA to +20 mA) 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC

● 4 mA to 20 mA Yes

— Input resistance (4 mA to 20 mA) 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC

Input ranges (rated values), thermocouples

● type B Yes

— Input resistance (Type B) 10 MΩ

● type C No

● Type E Yes

— Input resistance (Type E) 10 MΩ

● Type J Yes

— Input resistance (type J) 10 MΩ

● Type K Yes

— Input resistance (Type K) 10 MΩ

● Type L No

● Type N Yes

— Input resistance (Type N) 10 MΩ

● Type R Yes

— Input resistance (Type R) 10 MΩ

● Type S Yes

— Input resistance (Type S) 10 MΩ

● Type T Yes

— Input resistance (Type T) 10 MΩ

● Type TXK/TXK(L) to GOST No

Input ranges (rated values), resistance thermometer

● Cu 10 No

● Cu 10 according to GOST No

● Cu 50 No

● Cu 50 according to GOST No

● Cu 100 No

● Cu 100 according to GOST No

● Ni 10 No

● Ni 10 according to GOST No

● Ni 100 Yes; Standard/climate

— Input resistance (Ni 100) 10 MΩ

● Ni 100 according to GOST No

● Ni 1000 Yes; Standard/climate

— Input resistance (Ni 1000) 10 MΩ

● Ni 1000 according to GOST No

● LG-Ni 1000 Yes; Standard/climate

— Input resistance (LG-Ni 1000) 10 MΩ

● Ni 120 No

● Ni 120 according to GOST No

● Ni 200 according to GOST No

● Ni 500 No

● Ni 500 according to GOST No

● Pt 10 No

● Pt 10 according to GOST No

● Pt 50 No

● Pt 50 according to GOST No

● Pt 100 Yes; Standard/climate

— Input resistance (Pt 100) 10 MΩ

● Pt 100 according to GOST No

● Pt 1000 Yes; Standard/climate

— Input resistance (Pt 1000) 10 MΩ

● Pt 1000 according to GOST No

● Pt 200 Yes; Standard/climate

— Input resistance (Pt 200) 10 MΩ

● Pt 200 according to GOST No

● Pt 500 Yes; Standard/climate

— Input resistance (Pt 500) 10 MΩ

● Pt 500 according to GOST No

Input ranges (rated values), resistors

● 0 to 150 ohms Yes

— Input resistance (0 to 150 ohms) 10 MΩ

● 0 to 300 ohms Yes

— Input resistance (0 to 300 ohms) 10 MΩ

● 0 to 600 ohms Yes

— Input resistance (0 to 600 ohms) 10 MΩ

● 0 to 3000 ohms No

● 0 to 6000 ohms Yes

— Input resistance (0 to 6000 ohms) 10 MΩ

● PTC Yes

— Input resistance (PTC) 10 MΩ

Thermocouple (TC)

Temperature compensation

— Parameterizable Yes

— internal temperature compensation Yes

— external temperature compensation via RTD Yes

— Compensation for 0 °C reference point temperature Yes; fixed value can be set

— Reference channel of the module Yes

Cable length

● shielded, max. 800 m; for U/I, 200 m for R/RTD, 50 m for TC

Analog value generation for the inputs

Measurement principle integrating

Integration and conversion time/resolution per channel

● Resolution with overrange (bit including sign), max. 16 bit

● Integration time, parameterizable Yes

● Integration time (ms) 2,5 / 16,67 / 20 / 100 ms

● Basic conversion time, including integration time (ms) 9 / 23 / 27 / 107 ms

— additional conversion time for wire-break monitoring 9 ms (to be considered in R/RTD/TC measurement)

— additional conversion time for resistance measurement 150 ohm, 300 ohm, 600 ohm, Pt100, Pt200, Ni100: 2 ms, 6000 ohm, Pt500, Pt1000, Ni1000, LG-Ni1000, PTC: 4 ms

● Interference voltage suppression for interference frequency f1 in Hz 400 / 60 / 50 / 10 Hz

● Time for offset calibration (per module) Basic conversion time of the slowest channel

Smoothing of measured values

● Number of smoothing levels 4

● Parameterizable Yes

● Step: None Yes

● Step: low Yes

● Step: Medium Yes

● Step: High Yes

Encoder

Connection of signal encoders

● for voltage measurement Yes

● for current measurement as 2-wire transducer Yes

— Burden of 2-wire transmitter, max. 820 Ω

● for current measurement as 4-wire transducer Yes

● for resistance measurement with two-wire connection Yes; Only for PTC

● for resistance measurement with three-wire connection Yes; All measuring ranges except PTC; internal compensation of the cable resistances

● for resistance measurement with four-wire connection Yes; All measuring ranges except PTC

Errors/accuracies

Linearity error (relative to input range), (+/-) 0.02 %

Temperature error (relative to input range), (+/-) 0.005 %/K; With TC type T 0.02 ± % / K

Crosstalk between the inputs, max. -80 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.02 %

Temperature error of internal compensation ±6 °C

Operational error limit in overall temperature range

● Voltage, relative to input range, (+/-) 0.3 %

● Current, relative to input range, (+/-) 0.3 %

● Resistance, relative to input range, (+/-) 0.3 %

● Resistance thermometer, relative to input range, (+/-) Ptxxx standard: ±1.5 K, Ptxxx climate: ±0.5 K, Nixxx standard: ±0.5 K, Nixxx climate: ±0.3 K

● Thermocouple, relative to input range, (+/-) Type B: > 600 °C ±4.6 K, type E: > -200 °C ±1.5 K, type J: > -210 °C ±1.9 K, type K: > -200 °C ±2.4 K, type N: > -200 °C ±2.9 K, type R: > 0 °C ±4.7 K, type S: > 0 °C ±4.6 K, type T: > -200 °C ±2.4 K

Basic error limit (operational limit at 25 °C)

● Voltage, relative to input range, (+/-) 0.1 %

● Current, relative to input range, (+/-) 0.1 %

● Resistance, relative to input range, (+/-) 0.1 %

● Resistance thermometer, relative to input range, (+/-) Ptxxx standard: ±0.7 K, Ptxxx climate: ±0.2 K, Nixxx standard: ±0.3 K, Nixxx climate: ±0.15 K

● Thermocouple, relative to input range, (+/-) Type B: > 600 °C ±1.7 K, type E: > -200 °C ±0.7 K, type J: > -210 °C ±0.8 K, type K: > -200 °C ±1.2 K, type N: > -200 °C ±1.2 K, type R: > 0 °C ±1.9 K, type S: > 0 °C ±1.9 K, type T: > -200 °C ±0.8 K

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

● Series mode interference (peak value of interference < rated value of input range), min. 40 dB

● Common mode voltage, max. 10 V

● Common mode interference, min. 60 dB

Interrupts/diagnostics/status information

Diagnostics function Yes

Alarms

● Diagnostic alarm Yes

● Limit value alarm Yes; two upper and two lower limit values in each case

Diagnoses

● Monitoring the supply voltage Yes

● Wire break Yes; Only for 1 to 5 V, 4 to 20 mA, TC, R, and RTD

● Short-circuit No

● Group error No

● Overflow/Underflow Yes

Diagnostics indication LED

● RUN LED Yes; green LED

● ERROR LED Yes; red LED

● MAINT LED No

● Monitoring of the supply voltage (PWR-LED) Yes; green LED

● Channel status display Yes; green LED

● for channel diagnostics Yes; red LED

● for module diagnostics Yes; red LED

Potential separation

Potential separation channels

● between the channels No

● between the channels, in groups of 8

● between the channels and backplane bus Yes

● between the channels and the power supply of the electronics Yes

Permissible potential difference

between the inputs (UCM) 20 V DC

Between the inputs and MANA (UCM) 10 V DC

Isolation

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates

Siemens Eco Profile (SEP) Siemens EcoTech

Suitable for applications according to AMS 2750 Yes; Declaration of Conformity, see online support entry 109757262

Suitable for applications according to CQI-9 Yes; Based on AMS 2750 E

Ecological footprint

● environmental product declaration Yes

Global warming potential

— global warming potential, (total) [CO2 eq] 38.6 kg

— global warming potential, (during production) [CO2 eq] 14.4 kg

— global warming potential, (during operation) [CO2 eq] 24.6 kg

— global warming potential, (after end of life cycle) [CO2 eq]
