S7-1500 by siemens

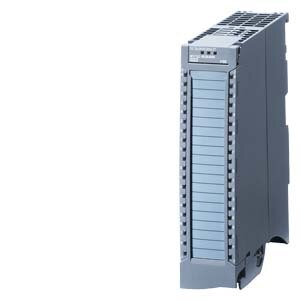

S7-1500, CM 8xIO-Link-6ES7547-1JF00-0AB0

INR 1

Contact Us

Phone Number

08048034052

Please keep 0 before dialling the number.

Email Address sales1@mechatronsystem.in

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website
Address Block-A-Shop-620, Girivar Glean, Odhav Industrial Estate,SP Ring Road, Ahmedabad - 382415, Gujarat, India

India, Gujarat, India, 382415

Description

S7-1500, CM 8xIO-Link, communication module IO-Link Master V1.1; Front connector (screw terminals or push-in) to be ordered separately General information Product type designation CM 8xIO-Link HW functional status FS04 Firmware version V1.0.2 ● FW update possible Yes Product function ● I&M data Yes; I&M0 to I&M3 ● Isochronous mode No Engineering with ● STEP 7 TIA Portal configurable/integrated from version V15.1 with HSP 274 ● STEP 7 configurable/integrated from version Configurable via GSD file ● PROFIBUS from GSD version/GSD revision GSD as of Revision 5 ● PROFINET from GSD version/GSD revision GSDML V2.34 Operating mode ● IO-Link Yes ● DI Yes ● DQ No Supply voltage Rated value (DC) 24 V permissible range, lower limit (DC) 20.4 V permissible range, upper limit (DC) 28.8 V Reverse polarity protection Yes Input current Current consumption, max. 50 mA; without load Encoder supply Number of outputs 8 Output current ● nominal 1 A; 4 A total current per module 24 V encoder supply ● Short-circuit protection Yes; per channel, electronic Power Power consumption from the backplane bus 1.1 W IO-Link Number of ports 8 ● of which simultaneously controllable 8 IO-Link protocol 1.0 Yes IO-Link protocol 1.1 Yes Cycle time, min. 2 ms Size of process data, input per port 33 byte; max. Size of process data, input per module 240 byte; max. Size of process data, output per port 32 byte; max. Size of process data, output per module 240 byte; max. Memory size for device parameter 2 kbyte; for each port Master backup Yes Configuration without S7-PCT Yes Cable length unshielded, max. 20 m Time Based IO ● TIO IO-Link IN No ● TIO IO-Link OUT No ● TIO IO-Link IN/OUT No Connection of IO-Link devices ● Port type A Yes ● Port type B Yes; 24 V DC via external terminal Interrupts/diagnostics/status information Alarms ● Diagnostic alarm Yes; The port diagnosis is available in the IO-Link mode only. Diagnoses ● Monitoring the supply voltage Yes ● Wire break Yes ● Short-circuit Yes ● Group error Yes Diagnostics indication LED ● Monitoring of the supply voltage (PWR-LED) Yes; green LED ● Channel status display Yes; green LED ● for channel diagnostics Yes; red LED ● for module diagnostics

Other Products

view all

6814772a5d263414004dd4a4 Card 2

product image
S7-200 SMART

SmartG2 Communication Module CM01, RS485 6ES7288-5CM01-0AA1

SIMATIC S7-200 SMART G2, communications module CM 01, RS485/232 supports Freeport

6814772a5d263414004dd4a4 Card 2

product image
S7-200 SMART

Slim analog Input SM AT08 TC, 8AI -6ES7288-3AT08-0AA1

SIMATIC S7-200 SMART G2, slim analog input EM AI08, 8 AI, 8xAI thermocouples Product type designation EM AT08, AI TC 8x16 bit Supply voltage Type of supply voltage none Input current from backplane bus 5 V DC, max. 105 mA; For 5 V DC from CPU module Analog inputs Number of analog inputs 8 Input ranges ● Voltage Yes; ±80 mV ● Current No ● Thermocouple Yes ● Resistance thermometer No ● Resistance No Cable length ● shielded, max. 100 m; to the sensor Analog outputs Number of analog outputs 0 Analog value generation for the inputs Measurement principle Sigma Delta Integration and conversion time/resolution per channel ● Resolution with overrange (bit including sign), max. 16 bit Smoothing of measured values ● Step: None Yes ● Step: low Yes ● Step: Medium Yes ● Step: High Yes Interrupts/diagnostics/status information Diagnoses ● Wire break Yes
