ETHERNET SWITCH by SIEMENS

SCALANCE X202-2IRT-6GK5202-2BB10-2BA3

INR 1
DATASHEET
In stock

Description

SCALANCE X202-2IRT managed IE IRT switch, 2x 10/100 Mbps RJ45 ports, 2x 100 Mbps multimode BFOC, error signaling contact with set pushbutton, redundant power supply, PROFINET IO device, network management, Redundancy Manager integrated, incl. electron. manual on CD-ROM, C-PLUG optional

product type designation

product brand name SCALANCE

product type designation X202-2IRT

Technical Product Detail Page https://i.siemens.com/1P6GK5202-2BB10-2BA3

transfer rate

transfer rate 10, 100 Mbit/s

interfaces / for communication / integrated

number of electrical connections

● for network components or terminal equipment 2

number of 100 Mbit/s ST(BFOC) ports

● for multimode 2

transmission method / of the optical interface 100BaseFX

interfaces / other

number of electrical connections

● for signaling contact 1

● for power supply 1

type of electrical connection

● for signaling contact 2-pole terminal block

● for power supply 4-pole terminal block

design of the removable storage

● C-PLUG Yes

operating voltage / of the signaling contacts

● at DC / rated value 24 V

operational current / of the signaling contacts

● at DC / maximum 0.1 A

supply voltage, current consumption, power loss

product component / connection for redundant voltage supply Yes

type of voltage / 1 / of the supply voltage DC

● supply voltage / 1 / rated value 24 V

● power loss [W] / 1 / rated value 5.8 W

● supply voltage / 1 / voltage range 18 ... 32

● consumed current / 1 / maximum 0.24 A

● product component / 1 / fusing at power supply input Yes

● fuse protection type / 1 / at input for supply voltage 2.5 A (cannot be replaced by user)

ambient conditions

ambient temperature

● during operation -40 ... +60 °C

● during storage -40 ... +85 °C

● during transport -40 ... +85 °C

relative humidity

● at 25 °C / without condensation / during operation / maximum 95 %

protection class IP IP30

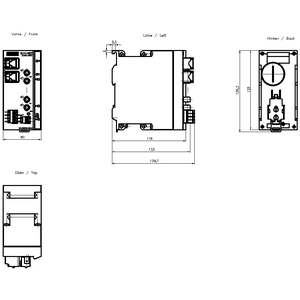

design, dimensions and weights

design compact

width 60 mm

height 125 mm

depth 124 mm

net weight 0.78 kg

fastening method

● 35 mm DIN-rail mounting Yes

● wall mounting Yes

● S7-300 rail mounting Yes

● S7-1500 rail mounting No

product features, product functions, product components / general

cascading in the case of a redundant ring / at reconfiguration time of <~0.3~s 50

cascading in cases of star topology any (depending only on signal propagation time)

product functions / management, configuration, engineering

product function

● CLI Yes

● web-based management Yes

● MIB support Yes

● TRAPs via email Yes

● configuration with STEP 7 Yes

● port mirroring No

● multiport mirroring No

● with IRT / PROFINET IO switch Yes

● PROFINET IO diagnosis Yes

● switch-managed Yes

PROFINET conformity class C

network load class / according to PROFINET II

protocol / is supported

● Telnet Yes

● HTTP Yes

● HTTPS Yes

● TFTP Yes

● FTP Yes

● BOOTP No

● DCP Yes

● LLDP Yes

● SNMP v1 Yes

● SNMP v2 Yes

● SNMP v3 Yes

identification & maintenance function

● I&M0 - device-specific information Yes

● I&M1 - higher level designation/location designation Yes

product functions / diagnostics

product function

● port diagnostics Yes

● statistics Packet Size Yes

● statistics packet type Yes

● error statistics Yes

product functions / DHCP

product function

● DHCP client Yes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP) Yes

product function

● media redundancy protocol (MRP) with redundancy manager Yes

● ring redundancy Yes

● high speed redundancy protocol (HRP) with redundancy manager Yes

● high speed redundancy protocol (HRP) with standby redundancy Yes

● Parallel Redundancy Protocol (PRP)/operation in the PRP-network Yes

● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) No

● passive listening Yes

product functions / security

protocol / is supported

● SSH Yes

product functions / time

product function

● SICLOCK support Yes

protocol / is supported

● NTP No

● SNTP Yes

standards, specifications, approvals

certificate of suitability

● CE marking Yes

● UKCA marking Yes

● EC Declaration of Conformity EN 61010, IEC 61010-1, UL 61010A-1 Yes

● cULus approval Yes

● KC approval Yes

● Regulatory Compliance Mark (RCM) Yes

standard

● for EMC interference emission EN 61000-6-4:2001 (Class A)

● for immunity to EMC EN 61000-6-2

● for safety / from CSA and UL UL 61010-1, CAN/CSA C22.2 No. 61010-1

standards, specifications, approvals / hazardous environments

certificate of suitability

● ATEX Yes

● UKEX Yes

● IECEx Yes

● ULhazloc approval Yes

● CCC / for hazardous zone according to GB standard Yes

● FM registration Yes

standards, specifications, approvals / other

certificate of suitability

● railway application in accordance with EN 50155 No

● railway application in accordance with EN 50124-1 No

● RoHS conformity Yes

resistance to air pollution / conformity according to ANSI/ISA-71.04 Yes; G3

standards, specifications, approvals / marine classification

certificate of suitability / shipbuilding approval / note Certifications marked 'No' are currently under renewal.

Marine classification association

● American Bureau of Shipping Europe Ltd. (ABS) No

● French marine classification society (BV) No

● Chinese Classification Society (CCS) No

● Det Norske Veritas (DNV) No

● Korean Register of Shipping (KRS) No

● Lloyds Register of Shipping (LRS) No

● Nippon Kaiji Kyokai (NK) No

● Polski Rejestr Statkow (PRS) No

● Royal Institution of Naval Architects (RINA) No

standards, specifications, approvals / Environmental Product Declaration

Environmental Product Declaration Yes

global warming potential [CO2 eq]

● total 212.72999 kg

● during manufacturing 29.12 kg

● during operation 183.38 kg

● after end of life 0.23 kg

Specifications

TRANSFER RATE 10, 100 Mbit/s
PORT 2
