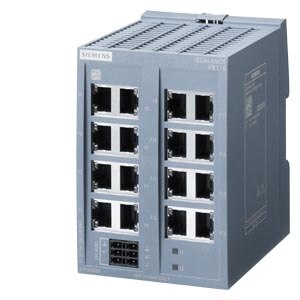

ETHERNET SWITCH by SIEMENS

SCALANCE XB116 -6GK5116-0BA00-2AB2

INR 1
DATASHEET
In stock

Description

SCALANCE XB116 unmanaged IE switch, 16x 10/100 Mbit/s RJ45 ports; for setting up small star and line topologies; LED diagnostics, IP20, Redundant power supply, 24 V AC/DC Manual available as a download .

product type designation

product brand name SCALANCE

product type designation XB116

Technical Product Detail Page https://i.siemens.com/1P6GK5116-0BA00-2AB2

transfer rate

transfer rate 10, 100 Mbit/s

interfaces / for communication / integrated

number of electrical connections

● for network components or terminal equipment 16; RJ45

interfaces / other

number of electrical connections

● for power supply 1

supply voltage, current consumption, power loss

product component / connection for redundant voltage supply Yes

type of voltage / 1 / of the supply voltage DC

● supply voltage / 1 / rated value 24 V

● power loss [W] / 1 / rated value 4.8 W

● supply voltage / 1 / voltage range 19.2 ... 28.8

● consumed current / 1 / maximum 0.2 A

● product component / 1 / fusing at power supply input Yes

● fuse protection type / 1 / at input for supply voltage 0,6 A / 60 V

type of voltage / 2 / of the supply voltage AC

● supply voltage / 2 / voltage range 19.2 ... 28.8

ambient conditions

ambient temperature

● during operation 0 ... 60 °C

● during storage -40 ... +80 °C

● during transport -40 ... +80 °C

relative humidity

● at 25 °C / without condensation / during operation / maximum 95 %

protection class IP IP20

design, dimensions and weights

design compact

width 80 mm

height 117 mm

depth 109 mm

net weight 0.375 kg

fastening method

● 35 mm DIN-rail mounting Yes

● wall mounting No

● S7-300 rail mounting No

● S7-1500 rail mounting No

product functions / management, configuration, engineering

product function

● multiport mirroring No

● CoS Yes

● switch-managed No

PROFINET conformity class A

product functions / redundancy

product function

● Parallel Redundancy Protocol (PRP)/operation in the PRP-network Yes

● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) No

standards, specifications, approvals

certificate of suitability

● CE marking Yes

● cULus approval Yes

● KC approval Yes

● Regulatory Compliance Mark (RCM) Yes

standard

● for EMC interference emission EN 61000-6-4 (Class B)

● for immunity to EMC 61000-6-2

● for safety / from CSA and UL UL 60950-1, CSA C22.2 No. 60950-1

Specifications

Tranfer Rate 10, 100 Mbit/s
PORT16; RJ45
