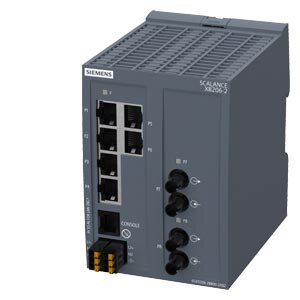

SCALANCE XB206-2 managed Layer 2 IE switch 6x 10/100 Mbps RJ45 ports 2x MM FO ST port 1x console port, diagnostics LED redundant power supply; IEC 62443-4-2 certified; temperature range 0 °C to +60 °C; DIN-rail mounting; default PROFINET.
product type designation
product brand name SCALANCE
product type designation XB206-2
Technical Product Detail Page https://i.siemens.com/1P6GK5206-2BB00-2AB2
transfer rate
transfer rate 10, 100 Mbit/s
interfaces / for communication / integrated
number of electrical connections
● for network components or terminal equipment 6; RJ45
number of 100 Mbit/s ST(BFOC) ports
● for multimode 2
transmission method / of the optical interface 100BaseFX
interfaces / other
number of electrical connections
● for operator console 1
● for power supply 1
type of electrical connection
● for operator console RJ11
● for management purposes RJ45
supply voltage, current consumption, power loss
product component / connection for redundant voltage supply Yes
type of voltage / 1 / of the supply voltage DC
● supply voltage / 1 / rated value 24 V
● power loss [W] / 1 / rated value 7.2 W
● supply voltage / 1 / voltage range 19.2 ... 28.8
● consumed current / 1 / maximum 0.3 A
● type of electrical connection / 1 / for power supply 6-pole terminal block
● product component / 1 / fusing at power supply input Yes
ambient conditions
ambient temperature
● during operation 0 ... 60 °C
● during storage -40 ... +70 °C
● during transport -40 ... +70 °C
relative humidity
● at 25 °C / without condensation / during operation / maximum 95 %
protection class IP IP20
design, dimensions and weights
design compact
width 80 mm
height 117 mm
depth 109 mm
net weight 0.35 kg
material / of the enclosure Polycarbonate (PC-GF10)
fastening method
● 35 mm DIN-rail mounting Yes
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <~0.3~s 50
cascading in cases of star topology any (depending only on signal propagation time)
product functions / management, configuration, engineering
product function
● CLI Yes
● web-based management Yes
● MIB support Yes
● TRAPs via email Yes
● configuration with STEP 7 Yes
● RMON Yes
● port mirroring Yes
● multiport mirroring No
● CoS Yes
● PROFINET IO diagnosis Yes
● switch-managed Yes
PROFINET conformity class B
network load class / according to PROFINET III
telegram length / for Ethernet / maximum 1632 byte
protocol / is supported
● Telnet Yes
● HTTP Yes
● HTTPS Yes
● TFTP Yes
● SFTP Yes
● BOOTP Yes
● DCP Yes
● LLDP Yes
● EtherNet/IP Yes
● SNMP v1 Yes
● SNMP v2 Yes
● SNMP v3 Yes
● IGMP (snooping/querier) Yes
identification & maintenance function
● I&M0 - device-specific information Yes
● I&M1 - higher level designation/location designation Yes
product functions / diagnostics
product function
● port diagnostics Yes
● statistics Packet Size Yes
● statistics packet type Yes
● error statistics Yes
● SysLog Yes
product functions / VLAN
product function
● VLAN - port based Yes
number of VLANs / maximum 257
number of VLANs - dynamic / maximum 257
number of VLANs / at ring redundancy (HRP; MRP; standby link) 257
product functions / DHCP
product function
● DHCP client Yes
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP) Yes
product function
● media redundancy protocol (MRP) with redundancy manager Yes
● Media Redundancy Protocol Interconnection (MRP-I) Yes; LC mode
● of the PROFINET IO device / is supported / PROFINET system redundancy No
● ring redundancy Yes
● high speed redundancy protocol (HRP) with redundancy manager Yes
● high speed redundancy protocol (HRP) with standby redundancy Yes
● redundancy procedure STP Yes
● redundancy procedure RSTP Yes
● redundancy procedure RSTP+ Yes
● Parallel Redundancy Protocol (PRP)/operation in the PRP-network Yes
● passive listening Yes
product functions / security
product function
● IEEE 802.1x (radius) Yes
● RADIUS client Yes
● broadcast/multicast/unicast limiter Yes
● broadcast blocking Yes
protocol / is supported
● SSH Yes
● SSL Yes
product functions / time
product function
● SICLOCK support Yes
● NTP-client Yes
● SNTP client Yes
protocol / is supported
● SNTP Yes
standards, specifications, approvals
certificate of suitability
● CE marking Yes
● UKCA marking Yes
● cULus approval Yes
● KC approval Yes
● Regulatory Compliance Mark (RCM) Yes
standard
● for EMC interference emission EN 61000-6-4 (Class A)
● for immunity to EMC EN 61000-6-2
● for safety / from CSA and UL UL 60950-1 E115352, CSA C22.2 No. 60950-1
Specifications
| transfer port | 10, 100 Mbit/s |
|---|---|
| PORT | 6; RJ45 |
