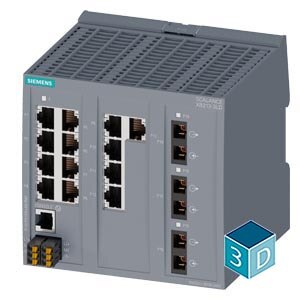

SCALANCE XB213-3LD managed layer 2 IE switch 13x 10/100 Mbit/s RJ45 ports, 3x SM FO SC-port 1x console port, diagnostics LED, redundant power supply; IEC 62443-4-2 certified; temperature range 0 °C to +60 °C; DIN-rail mounting; default PROFINET. product brand name SCALANCE product type designation XB213-3LD Technical Product Detail Page https://i.siemens.com/1P6GK5213-3BF00-2AB2 transfer rate transfer rate 10, 100 Mbit/s interfaces / for communication / integrated number of electrical connections ● for network components or terminal equipment 13; RJ45 number of 100 Mbit/s SC ports ● for single mode (LD) 3 transmission method / of the optical interface 100BaseLX LD interfaces / other number of electrical connections ● for operator console 1 ● for power supply 1 type of electrical connection ● for operator console RJ11 ● for management purposes RJ45 supply voltage, current consumption, power loss product component / connection for redundant voltage supply Yes type of voltage / 1 / of the supply voltage DC ● supply voltage / 1 / rated value 24 V ● power loss [W] / 1 / rated value 9.6 W ● supply voltage / 1 / voltage range 19.2 ... 28.8 ● consumed current / 1 / maximum 0.4 A ● type of electrical connection / 1 / for power supply 6-pole terminal block ● product component / 1 / fusing at power supply input Yes ambient conditions ambient temperature ● during operation 0 ... 60 °C ● during storage -40 ... +70 °C ● during transport -40 ... +70 °C relative humidity ● at 25 °C / without condensation / during operation / maximum 95 % protection class IP IP20 design, dimensions and weights design compact width 120 mm height 117 mm depth 109 mm net weight 0.5 kg material / of the enclosure Polycarbonate (PC-GF10) fastening method ● 35 mm DIN-rail mounting Yes product features, product functions, product components / general cascading in the case of a redundant ring / at reconfiguration time of <~0.3~s 50 cascading in cases of star topology any (depending only on signal propagation time) product functions / management, configuration, engineering product function ● CLI Yes ● web-based management Yes ● MIB support Yes ● TRAPs via email Yes ● configuration with STEP 7 Yes ● RMON Yes ● port mirroring Yes ● multiport mirroring Yes ● CoS Yes ● PROFINET IO diagnosis Yes ● switch-managed Yes PROFINET conformity class B network load class / according to PROFINET III telegram length / for Ethernet / maximum 1632 byte protocol / is supported ● Telnet Yes ● HTTP Yes ● HTTPS Yes ● TFTP Yes ● SFTP Yes ● BOOTP Yes ● DCP Yes ● LLDP Yes ● EtherNet/IP Yes ● SNMP v1 Yes ● SNMP v2 Yes ● SNMP v3 Yes ● IGMP (snooping/querier) Yes identification & maintenance function ● I&M0 - device-specific information Yes ● I&M1 - higher level designation/location designation Yes product functions / diagnostics product function ● port diagnostics Yes ● statistics Packet Size Yes ● statistics packet type Yes ● error statistics Yes ● SysLog Yes product functions / VLAN product function ● VLAN - port based Yes number of VLANs / maximum 257 number of VLANs - dynamic / maximum 257 number of VLANs / at ring redundancy (HRP; MRP; standby link) 257 product functions / DHCP product function ● DHCP client Yes product functions / redundancy protocol / is supported / Media Redundancy Protocol (MRP) Yes product function ● media redundancy protocol (MRP) with redundancy manager Yes ● Media Redundancy Protocol Interconnection (MRP-I) Yes; LC mode ● of the PROFINET IO device / is supported / PROFINET system redundancy No ● ring redundancy Yes ● high speed redundancy protocol (HRP) with redundancy manager Yes ● high speed redundancy protocol (HRP) with standby redundancy Yes ● redundancy procedure STP Yes ● redundancy procedure RSTP Yes ● redundancy procedure RSTP+ Yes ● Parallel Redundancy Protocol (PRP)/operation in the PRP-network Yes ● passive listening Yes product functions / security product function ● IEEE 802.1x (radius) Yes ● RADIUS client Yes ● broadcast/multicast/unicast limiter Yes ● broadcast blocking Yes protocol / is supported ● SSH Yes ● SSL Yes product functions / time product function ● SICLOCK support Yes ● NTP-client Yes ● SNTP client Yes protocol / is supported ● SNTP Yes standards, specifications, approvals certificate of suitability ● CE marking Yes ● cULus approval Yes ● KC approval Yes ● Regulatory Compliance Mark (RCM) Yes standard ● for EMC interference emission EN 61000-6-4 (Class A) ● for immunity to EMC EN 61000-6-2 ● for safety / from CSA and UL UL 60950-1 E115352, CSA C22.2 No. 60950-1
| Transfer Rate | 10, 100 Mbit/s |
| PORT | 13; RJ45 |
