Description

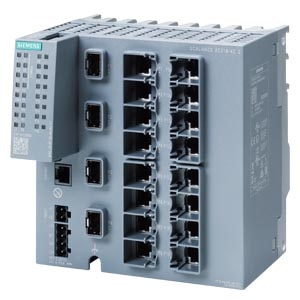

SCALANCE XC216-4C G manageable Layer 2 IE switch; IEC 62443-4-2 certified; Full gigabit; 12x 10/100/1000 Mbps RJ45 ports; 4x 1000 Mbps combo ports (either 1000 Mbps/ SFPs or 10/100/1000 Mbps RJ45 ports can be used); 1x console port; diagnostics LED; redundant power supply; temperature range -40 °C to +70 °C; assembly: DIN rail/S7 mounting rail/wall; redundancy functions; office features (RSTP, VLAN,...); PROFINET IO device; Ethernet/IP-compliant; C-PLUG slot; IEEE 1588v2 PTP product brand name SCALANCE product type designation XC216-4C G Technical Product Detail Page https://i.siemens.com/1P6GK5216-4GS00-2AC2 transfer rate transfer rate 10, 100, 1000 Mbit/s interfaces / for communication / integrated number of electrical connections ● for network components or terminal equipment 16; RJ45 number of 10/100/1000 Mbit/s RJ45 ports 16 number of combo ports / with RJ45 interface for optical plug-in transceiver 4; 1000 MBit/s SFPs interfaces / for communication / plug-in number of electrical connections ● for SFP 4 interfaces / other number of electrical connections ● for operator console 1 ● for signaling contact 1 ● for power supply 1 type of electrical connection ● for operator console RJ11 ● for signaling contact 2-pole terminal block ● for power supply 3-pole terminal block, permanently installed design of the removable storage ● C-PLUG Yes operating voltage / of the signaling contacts ● at DC / rated value 24 V supply voltage, current consumption, power loss product component / connection for redundant voltage supply Yes type of voltage / 1 / of the supply voltage DC ● supply voltage / 1 / rated value 24 V ● power loss [W] / 1 / rated value 13.2 W ● supply voltage / 1 / voltage range 9.6 ... 31.2 ● consumed current / 1 / maximum 0.55 A ● type of electrical connection / 1 / for power supply 3-pole terminal block, permanently installed ● product component / 1 / fusing at power supply input Yes ● fuse protection type / 1 / at input for supply voltage 3,15 A / 125 V ambient conditions ambient temperature ● during operation -40 ... +70 °C ● during storage -40 ... +85 °C ● during transport -40 ... +85 °C relative humidity ● at 25 °C / without condensation / during operation / maximum 95 % protection class IP IP20 design, dimensions and weights design compact width 140 mm height 150 mm depth 125 mm net weight 1.2 kg material / of the enclosure Polycarbonate (PC-GF10) / pressure die cast aluminum fastening method ● 35 mm DIN-rail mounting Yes ● wall mounting No ● S7-300 rail mounting Yes ● S7-1500 rail mounting Yes product features, product functions, product components / general cascading in the case of a redundant ring / at reconfiguration time of <~0.3~s 50 cascading in cases of star topology any (depending only on signal propagation time) product function ● QoS according to DSCP Yes product feature ● Cut Through switching method No ● Store & Forward switching method Yes product functions / management, configuration, engineering product function ● CLI Yes ● web-based management Yes ● MIB support Yes ● TRAPs via email Yes ● configuration with STEP 7 Yes ● RMON Yes ● SMTP server No ● port mirroring Yes ● multiport mirroring Yes ● CoS Yes ● PROFINET IO diagnosis Yes ● switch-managed Yes PROFINET conformity class B network load class / according to PROFINET III telegram length / for Ethernet / maximum 10240 byte protocol / is supported ● Telnet Yes ● HTTP Yes ● HTTPS Yes ● TFTP Yes ● SFTP Yes ● BOOTP Yes ● GMRP Yes ● DCP Yes ● LLDP Yes ● EtherNet/IP Yes ● SNMP v1 Yes ● SNMP v2 Yes ● SNMP v3 Yes ● IGMP (snooping/querier) Yes identification & maintenance function ● I&M0 - device-specific information Yes ● I&M1 - higher level designation/location designation Yes product functions / diagnostics product function ● port diagnostics Yes ● statistics Packet Size Yes ● statistics packet type Yes ● error statistics Yes ● SysLog Yes product functions / VLAN product function ● VLAN - port based Yes ● VLAN - protocol-based No ● VLAN - IP-based No number of VLANs / maximum 257 number of VLANs - dynamic / maximum 257 number of VLANs / at ring redundancy (HRP; MRP; standby link) 257 product functions / DHCP product function ● DHCP server Yes ● DHCP client Yes ● DHCP Option 82 Yes ● DHCP Option 66 Yes ● DHCP Option 67 Yes product functions / redundancy protocol / is supported / Media Redundancy Protocol (MRP) Yes product function ● media redundancy protocol (MRP) with redundancy manager Yes ● Media Redundancy Protocol Interconnection (MRP-I) Yes; LC mode ● of the PROFINET IO device / is supported / H-Sync forwarding Yes ● of the PROFINET IO device / is supported / PROFINET system redundancy Yes ● ring redundancy Yes ● high speed redundancy protocol (HRP) with redundancy manager Yes ● high speed redundancy protocol (HRP) with standby redundancy Yes ● redundancy procedure STP Yes ● redundancy procedure RSTP Yes ● redundancy procedure RSTP+ Yes ● redundancy procedure MSTP Yes ● Parallel Redundancy Protocol (PRP)/operation in the PRP-network Yes ● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) No ● passive listening Yes protocol / is supported ● LACP Yes system modification during operation product function / configuration in RUN via CiR/H-CiR Yes product functions / security product function ● IEEE 802.1x (radius) Yes ● RADIUS client Yes ● broadcast/multicast/unicast limiter Yes ● broadcast blocking Yes protocol / is supported ● SSH Yes ● SSL Yes product functions / time product function ● SICLOCK support Yes ● NTP-client Yes ● SNTP client Yes protocol / is supported ● NTP Yes ● SNTP Yes ● IEEE 1588 profile default Yes standards, specifications, approvals certificate of suitability ● CE marking Yes ● cULus approval Yes ● KC approval Yes ● Regulatory Compliance Mark (RCM) Yes product conformity / according to EMC-guideline 2014/30/EU standard ● for EMC interference emission EN 61000-6-4, EN 50121-4 ● for immunity to EMC EN 61000-6-2, EN 50121-4 ● for safety / from CSA and UL UL 60950-1 E115352, UL-61010-2 E85972
