Description

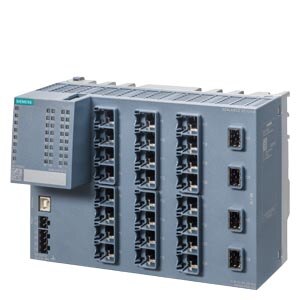

SCALANCE XC324-4 managed layer 2 IE switch, 24x 10/100/1000 Mbit/s RJ45, 4x 1/10 Gbit/s SFP+ port, LED diagnostics,error signaling contact with select/set pushbutton, PROFINET IO device, network management, redundancy functions, office features (RSTP, VLAN, IGMP,..) CLP included in scope of supply assembly: DIN rail/S7 mounting rail .
product brand name SCALANCE
product type designation XC324-4
Technical Product Detail Page https://i.siemens.com/1P6GK5328-4TS00-2AC2
transfer rate
transfer rate 10, 100, 1000 Mbit/s
transfer rate 10 Gbit/s
interfaces / for communication / integrated
number of electrical connections
● for network components or terminal equipment 24; RJ45
number of 10/100/1000 Mbit/s RJ45 ports
● with securing collar 24
number of electrical connections
● for SFP+ 4; 1000 Mbps and 10000 Mbps SFP usable
interfaces / other
number of electrical connections
● for operator console 1
● for signaling contact 1
● for power supply 1
type of electrical connection
● for operator console USB (2.0 type B, USB-to-serial adapter)
● for signaling contact 2-pole terminal block
● for power supply 2 x 2-pole terminal block
design of the removable storage
● CLP Yes
operating voltage / of the signaling contacts
● at DC / rated value 24 V
operational current / of the signaling contacts
● at DC / maximum 0.1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supply Yes
type of voltage / 1 / of the supply voltage DC
● supply voltage / 1 / rated value 24 V
● power loss [W] / 1 / rated value 43.2 W
● power loss [W] / at DC / at 24 V / typical 25.92 W
● supply voltage / 1 / voltage range 19.2 ... 28.8
● consumed current / 1 / maximum 1.8 A
● consumed current / at DC / at 24 V / typical 1.08 A
● type of electrical connection / 1 / for power supply 2 x 2-pole terminal block
● product component / 1 / fusing at power supply input Yes
● fuse protection type / 1 / at input for supply voltage F 10 A / 250 V
ambient conditions
ambient temperature
● during operation -40 ... +60 °C
● during storage -40 ... +85 °C
● during transport -40 ... +85 °C
relative humidity
● at 25 °C / without condensation / during operation / maximum 95 %
operating condition / fanless operation Yes
protection class IP IP20
design, dimensions and weights
design compact
width 210 mm
height 147 mm
depth 125 mm
net weight 1.9 kg
fastening method
● 19-inch installation No
● 35 mm DIN-rail mounting Yes
● wall mounting Yes
● S7-300 rail mounting Yes
● S7-1500 rail mounting Yes
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <~0.3~s 50
number of automatically learnable MAC addresses 16382
number of QoS queues / per port 8
product function
● QoS according to IEEE 802.1Q Yes
product feature
● Store & Forward switching method Yes
product functions / management, configuration, engineering
product function
● CLI Yes
● web-based management Yes
● MIB support Yes
● TRAPs via email Yes
● configuration with STEP 7 Yes
● RMON Yes
● port mirroring Yes
● multiport mirroring Yes
● CoS Yes
● PROFINET IO diagnosis Yes
● switch-managed Yes
PROFINET conformity class B
network load class / according to PROFINET III
telegram length / for Ethernet / maximum 9194 byte
protocol / is supported
● Telnet Yes
● HTTP Yes
● HTTPS Yes
● TFTP Yes
● FTP Yes
● SFTP Yes
● BOOTP No
● NETCONF No
● GMRP Yes
● DCP Yes
● LLDP Yes
● EtherNet/IP Yes
● SNMP v1 Yes
● SNMP v2 Yes
● SNMP v3 Yes
● IGMP (snooping/querier) Yes
identification & maintenance function
● I&M0 - device-specific information Yes
● I&M1 - higher level designation/location designation Yes
product functions / diagnostics
product function
● port diagnostics Yes
● statistics Packet Size Yes
● statistics packet type Yes
● error statistics Yes
● SysLog Yes
product functions / VLAN
product function
● VLAN - port based Yes
● VLAN - protocol-based No
● VLAN - IP-based No
● VLAN dynamic Yes
number of VLANs / maximum 257
number of VLANs - dynamic / maximum 257
number of VLANs / at ring redundancy (HRP; MRP; standby link) 257
product function / VXLAN according to RFC 7348 Yes
product functions / DHCP
product function
● DHCP server Yes
● DHCP client Yes
● DHCP Option 82 Yes
● DHCP Option 66 Yes
● DHCP Option 67 Yes
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP) Yes
product function
● media redundancy protocol (MRP) with redundancy manager Yes
● Media Redundancy Protocol Interconnection (MRP-I) Yes; LC mode
● of the PROFINET IO device / is supported / H-Sync forwarding Yes
● of the PROFINET IO device / is supported / PROFINET system redundancy Yes
● ring redundancy Yes
● high speed redundancy protocol (HRP) with redundancy manager Yes
● high speed redundancy protocol (HRP) with standby redundancy Yes
● redundancy procedure STP Yes
● redundancy procedure RSTP Yes
● redundancy procedure RSTP+ Yes
● redundancy procedure MSTP Yes
● High-availability Seamless Redundancy (HSR) Yes
● Parallel Redundancy Protocol (PRP)/operation in the PRP-network Yes
● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) Yes
● passive listening Yes
● eRSTP Yes
protocol / is supported
● STP/RSTP Yes
● STP Yes
● RSTP Yes
● RSTP big network support Yes
● LACP Yes
system modification during operation
product function / configuration in RUN via CiR/H-CiR Yes
product functions / security
product function
● IEEE 802.1x (radius) Yes
● broadcast/multicast/unicast limiter Yes
● broadcast blocking Yes
protocol / is supported
● SSH Yes
● SSL Yes
product functions / time
product function
● SICLOCK support Yes
● NTP-client Yes
● SNTP client Yes
● IEEE 1588 v2 transparent forwarding Yes
protocol / is supported
● NTP Yes
● SNTP Yes
● IEEE 1588 profile default No
accuracy / at IEEE 1588 v2
● not less than 100 ns
● typical 50 ns
standards, specifications, approvals
certificate of suitability
● CE marking Yes
● UKCA marking Yes
● cULus approval Yes
● KC approval Yes
● Regulatory Compliance Mark (RCM) Yes
product conformity / according to EMC-guideline 2014/30/EU
standard
● for EMC interference emission EN 61000-6-4
● for immunity to EMC EN 61000-6-2
● for safety / from CSA and UL UL 60950-1 E115352, UL-61010-2 E85972 - 2
standards, specifications, approvals / hazardous environments
certificate of suitability
● ATEX Yes
● UKEX Yes
● IECEx Yes
● ULhazloc approval Yes
● CCC / for hazardous zone according to GB standard Yes
● FM registration Yes
standards, specifications, approvals / other
certificate of suitability
● railway application in accordance with EN 50121-4 Yes; use only in areas not accessible to the public
● railway application in accordance with EN 50125-3 Yes; Section 4.2: Class AX (up to 2000m); section 4.3: T1: Containers N.T.C and T.C. / Buildings N.C.C and C.C, T2: Containers N.T.C and T.C. / Buildings N.C.C and C.C, TX: Containers N.T.C and T.C. / Buildings N.C.C and C.C., derating according to the manual must be observed when SFP/SFP+ transceivers are used --> only for variants with optical connections; In addition, depending on the installation position, the derating according to the manual must be taken into account; section 4.4: T1: Containers C.C. / Buildings N.C.C and C.C., T2: Containers C.C. / Buildings N.C.C and C.C, T3: Containers C.C. / Buildings N.C.C and C.C; section 4.11: C1: Indoor, C2: Indoor (except condensation), C3: Indoor (except condensation), 4B1, 4S10, UL 61010-2-10; section 4.13: partially, Test Fc: Vibration EN 60068-2-6; IEC 60068-2-6, Test Ea: Shock EN 60068-2-27; IEC 60068-2-27, Test Ec: Rough handling, shocks EN 60068-2-31; IEC 60068-2-31; section 4.14: yes; section 4.15: yes, according to manual.
resistance to air pollution / conformity according to ANSI/ISA-71.04 Yes; G3
IT security for industrial automation systems / according to IEC 62443-4-2:2019 Yes
Specifications
| PORT | 24; RJ45 |
|---|
