Description

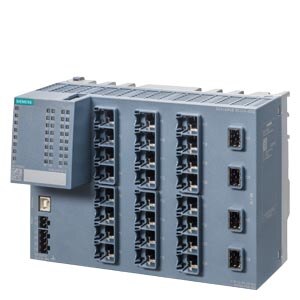

SCALANCE XC324-4EEC managed layer 2 IE switch, 24x 10/100/1000 Mbit/s RJ45, 4x 1/10 Gbit/s SFP+ port, LED diagnostics,error signaling contact with select/set pushbutton, PROFINET IO device, network management, redundancy functions, office features (RSTP, VLAN, IGMP,..) CLP included in scope of supply assembly: DIN rail/S7 mounting rail . product brand name SCALANCE product type designation XC324-4EEC Technical Product Detail Page https://i.siemens.com/1P6GK5328-4TS00-2EC2 transfer rate transfer rate 10, 100, 1000 Mbit/s transfer rate 10 Gbit/s interfaces / for communication / integrated number of electrical connections ● for network components or terminal equipment 24; RJ45 number of 10/100/1000 Mbit/s RJ45 ports ● with securing collar 24 number of electrical connections ● for SFP+ 4; 1000 Mbps and 10000 Mbps SFP usable interfaces / other number of electrical connections ● for operator console 1 ● for signaling contact 1 ● for power supply 1 type of electrical connection ● for operator console USB (2.0 type B, USB-to-serial adapter) ● for signaling contact 2-pole terminal block ● for power supply 2 x 2-pole terminal block design of the removable storage ● CLP Yes operating voltage / of the signaling contacts ● at DC / rated value 24 V operational current / of the signaling contacts ● at DC / maximum 0.1 A supply voltage, current consumption, power loss product component / connection for redundant voltage supply Yes type of voltage / 1 / of the supply voltage DC ● supply voltage / 1 / rated value 24 V ● power loss [W] / 1 / rated value 43.2 W ● power loss [W] / at DC / at 24 V / typical 25.92 W ● supply voltage / 1 / voltage range 19.2 ... 28.8 ● consumed current / 1 / maximum 1.8 A ● consumed current / at DC / at 24 V / typical 1.08 A ● type of electrical connection / 1 / for power supply 2 x 2-pole terminal block ● product component / 1 / fusing at power supply input Yes ● fuse protection type / 1 / at input for supply voltage F 10 A / 250 V ambient conditions ambient temperature ● during operation -40 ... +60 °C ● during storage -40 ... +85 °C ● during transport -40 ... +85 °C relative humidity ● at 25 °C / without condensation / during operation / maximum 95 % operating condition / fanless operation Yes protection class IP IP20 design, dimensions and weights design compact width 210 mm height 147 mm depth 125 mm net weight 1.9 kg product feature / conformal coating Yes fastening method ● 19-inch installation No ● 35 mm DIN-rail mounting Yes ● wall mounting Yes ● S7-300 rail mounting Yes ● S7-1500 rail mounting Yes product features, product functions, product components / general cascading in the case of a redundant ring / at reconfiguration time of <~0.3~s 50 number of automatically learnable MAC addresses 16382 number of QoS queues / per port 8 product function ● QoS according to IEEE 802.1Q Yes product feature ● Store & Forward switching method Yes product functions / management, configuration, engineering product function ● CLI Yes ● web-based management Yes ● MIB support Yes ● TRAPs via email Yes ● configuration with STEP 7 Yes ● RMON Yes ● port mirroring Yes ● multiport mirroring Yes ● CoS Yes ● PROFINET IO diagnosis Yes ● switch-managed Yes PROFINET conformity class B network load class / according to PROFINET III telegram length / for Ethernet / maximum 9194 byte protocol / is supported ● Telnet Yes ● HTTP Yes ● HTTPS Yes ● TFTP Yes ● FTP Yes ● SFTP Yes ● BOOTP No ● NETCONF No ● GMRP Yes ● DCP Yes ● LLDP Yes ● EtherNet/IP Yes ● SNMP v1 Yes ● SNMP v2 Yes ● SNMP v3 Yes ● IGMP (snooping/querier) Yes identification & maintenance function ● I&M0 - device-specific information Yes ● I&M1 - higher level designation/location designation Yes product functions / diagnostics product function ● port diagnostics Yes ● statistics Packet Size Yes ● statistics packet type Yes ● error statistics Yes ● SysLog Yes product functions / VLAN product function ● VLAN - port based Yes ● VLAN - protocol-based No ● VLAN - IP-based No ● VLAN dynamic Yes number of VLANs / maximum 257 number of VLANs - dynamic / maximum 257 number of VLANs / at ring redundancy (HRP; MRP; standby link) 257 product function / VXLAN according to RFC 7348 Yes product functions / DHCP product function ● DHCP server Yes ● DHCP client Yes ● DHCP Option 82 Yes ● DHCP Option 66 Yes ● DHCP Option 67 Yes product functions / redundancy protocol / is supported / Media Redundancy Protocol (MRP) Yes product function ● media redundancy protocol (MRP) with redundancy manager Yes ● Media Redundancy Protocol Interconnection (MRP-I) Yes; LC mode ● of the PROFINET IO device / is supported / H-Sync forwarding Yes ● of the PROFINET IO device / is supported / PROFINET system redundancy Yes ● ring redundancy Yes ● high speed redundancy protocol (HRP) with redundancy manager Yes ● high speed redundancy protocol (HRP) with standby redundancy Yes ● redundancy procedure STP Yes ● redundancy procedure RSTP Yes ● redundancy procedure RSTP+ Yes ● redundancy procedure MSTP Yes ● High-availability Seamless Redundancy (HSR) Yes ● Parallel Redundancy Protocol (PRP)/operation in the PRP-network Yes ● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) Yes ● passive listening Yes ● eRSTP Yes protocol / is supported ● STP/RSTP Yes ● STP Yes ● RSTP Yes ● RSTP big network support Yes ● LACP Yes system modification during operation product function / configuration in RUN via CiR/H-CiR Yes product functions / security product function ● IEEE 802.1x (radius) Yes ● broadcast/multicast/unicast limiter Yes ● broadcast blocking Yes protocol / is supported ● SSH Yes ● SSL Yes product functions / time product function ● SICLOCK support Yes ● NTP-client Yes ● SNTP client Yes ● IEEE 1588 v2 transparent forwarding Yes protocol / is supported ● NTP Yes ● SNTP Yes ● IEEE 1588 profile default No accuracy / at IEEE 1588 v2 ● not less than 100 ns ● typical 50 ns standards, specifications, approvals certificate of suitability ● CE marking Yes ● UKCA marking Yes ● cULus approval Yes ● KC approval Yes ● Regulatory Compliance Mark (RCM) Yes product conformity / according to EMC-guideline 2014/30/EU standard ● for EMC interference emission EN 61000-6-4 ● for immunity to EMC EN 61000-6-2 ● for safety / from CSA and UL UL-61010-2 E85972
