Description

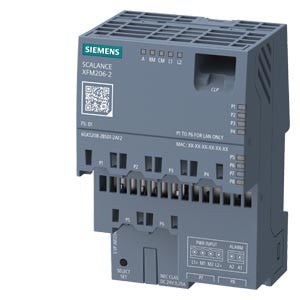

SCALANCE XFM206-2 flat managed layer 2 IE switch; 6 x 100 Mbps RJ45 ports; 2 x 100 Mbps / 1 Gbps SFP; redundant 24 V DC power supply; temperature range -40 °C to +60 °C; SINEC OS; PROFINET IO device CC-B; CLP slot; DIN-rail mounting;
product type designation
product brand name SCALANCE
product type designation XFM206-2
Technical Product Detail Page https://i.siemens.com/1P6GK5208-2BS01-2AF2
transfer rate
transfer rate 10, 100 Mbit/s
interfaces / for communication / integrated
number of electrical connections
● for network components or terminal equipment 6; RJ45
number of 10/100 Mbit/s RJ45 ports
● with securing collar 6
interfaces / for communication / plug-in
number of electrical connections
● for SFP 2
interfaces / other
number of electrical connections
● for signaling contact 1
● for power supply 1
type of electrical connection
● for signaling contact 2-pole terminal block
● for power supply 4-pole terminal block
design of the removable storage
● CLP Yes
operating voltage / of the signaling contacts
● at DC / rated value 24 V
operational current / of the signaling contacts
● at DC / maximum 0.1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supply Yes
type of voltage supply / redundant power supply unit No
type of voltage / 1 / of the supply voltage DC
● supply voltage / 1 / rated value 24 V
● power loss [W] / 1 / rated value 7.5 W
● power loss [W] / at DC / at 24 V / typical 7 W
● supply voltage / 1 / voltage range 19.2 ... 31.2
● type of electrical connection / 1 / for power supply 4-pole terminal block
● product component / 1 / fusing at power supply input Yes
● fuse protection type / 1 / at input for supply voltage F 1,5 A / 250 V
ambient conditions
ambient temperature
● during operation -40 ... +60 °C
● during storage -40 ... +70 °C
● during transport -40 ... +85 °C
● note during transport >1 year max. +40°C
ambient temperature / in horizontal mounting position / during operation -40 ... +60 °C; Starting at -40 °C; The maximum ambient temperature during operation depends on the operating height and the plug-in transceivers, see also manual.
installation altitude / at height above sea level / maximum 4000 m
relative humidity
● at 25 °C / without condensation / during operation / maximum 95 %
operating condition / fanless operation Yes
protection class IP IP20
design, dimensions and weights
design flat
width 75 mm
height 120 mm
depth 64 mm
net weight 0.23 kg
material / of the enclosure Polycarbonate (PC-GF10)
fastening method
● 35 mm DIN-rail mounting Yes
● wall mounting No
● S7-300 rail mounting No
● S7-1500 rail mounting No
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <~0.3~s 50
cascading in cases of star topology any (depending only on signal propagation time)
product function
● QoS according to DSCP Yes
product feature
● Store & Forward switching method Yes
product functions / management, configuration, engineering
product function
● CLI Yes
● web-based management Yes
● MIB support Yes
● TRAPs via email Yes
● configuration with STEP 7 Yes
● RMON No
● SMTP server No
● port mirroring Yes
● multiport mirroring No
● Encapsulated Remote Traffic Mirroring (ERTM) No
● CoS Yes
● PROFINET IO diagnosis Yes
● switch-managed Yes
PROFINET conformity class B
network load class / according to PROFINET III
telegram length / for Ethernet / maximum 2048 byte
protocol / is supported
● Telnet No
● HTTP Yes
● HTTPS Yes
● TFTP Yes
● FTP Yes
● SFTP Yes
● BOOTP No
● NETCONF Yes
● GMRP Yes
● DCP Yes
● LLDP Yes
● EtherNet/IP No
● SNMP v1 Yes
● SNMP v2 Yes
● SNMP v3 Yes
● IGMP (snooping/querier) Yes
identification & maintenance function
● I&M0 - device-specific information Yes
● I&M1 - higher level designation/location designation Yes
product functions / diagnostics
product function
● port diagnostics Yes
● statistics Packet Size Yes
● statistics packet type Yes
● error statistics Yes
● SysLog Yes
product functions / VLAN
product function
● VLAN - port based Yes
● VLAN - protocol-based No
● VLAN - IP-based No
● VLAN dynamic Yes
number of VLANs / maximum 257
number of VLANs - dynamic / maximum 257
number of VLANs / at ring redundancy (HRP; MRP; standby link) 257
product functions / DHCP
product function
● DHCP server No
● DHCP client Yes
● DHCP Option 82 No
● DHCP Option 66 Yes
● DHCP Option 67 Yes
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP) Yes
product function
● media redundancy protocol (MRP) with redundancy manager Yes
● Media Redundancy Protocol Interconnection (MRP-I) No
● Media Redundancy Protocol for Planned Duplication (MRPD) No
● of the PROFINET IO device / is supported / H-Sync forwarding Yes
● of the PROFINET IO device / is supported / PROFINET system redundancy Yes
● ring redundancy Yes
● high speed redundancy protocol (HRP) with redundancy manager No
● high speed redundancy protocol (HRP) with standby redundancy No
● redundancy procedure STP Yes
● redundancy procedure RSTP Yes
● redundancy procedure RSTP+ No
● redundancy procedure MSTP Yes
● passive listening Yes
● eRSTP No
protocol / is supported
● STP/RSTP Yes
● STP No
● RSTP Yes
● MSTP Yes
● LACP No
system modification during operation
product function / configuration in RUN via CiR/H-CiR Yes
product functions / security
product conformity / according to IEEE 802.1x-port based Network Access Control Yes
product function
● IEEE 802.1x (radius) Yes
● RADIUS client Yes
● broadcast/multicast/unicast limiter No
● broadcast blocking No
protocol / is supported
● RADIUS Yes
● SSH Yes
● SSL Yes
product functions / time
product function
● SICLOCK support Yes
● NTP-client Yes
● SNTP client No
protocol / is supported
● NTP Yes
● SNTP Yes
● IEEE 1588 profile default No
standards, specifications, approvals
certificate of suitability
● CE marking Yes
● UKCA marking Yes
● Regulatory Compliance Mark (RCM) Yes
product conformity / according to EMC-guideline 2014/30/EU
standard
● for EMC interference emission EN 61000-6-4
● for immunity to EMC EN 61000-6-2
● for safety / from CSA and UL in preparation
Specifications
| TRANSFER PORT | 10, 100 Mbit/s |
|---|---|
| PORT | 6; RJ45 |
