Description

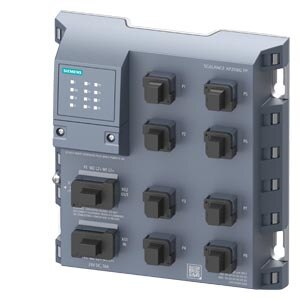

SCALANCE XP208G PP, managed layer 2 IE switch, 8x10/100/1000 Mbps, AIDA push/pull ports, IP65, -40 °C to +70 °C, power supply in/out, LED diagnostics, PROFINET IO device, network management, can be operated in redundant ring, dust caps, C-PLUG optional
product type designation
product brand name SCALANCE
product type designation XP208G PP
Technical Product Detail Page https://i.siemens.com/1P6GK5208-0JA00-2AS6
transfer rate
transfer rate 10, 100, 1000 Mbit/s
interfaces / for communication / integrated
number of electrical connections
● for network components or terminal equipment 8; RJ45, push-pull
number of 10/100/1000 Mbit/s RJ45 ports 8; RJ45, push-pull
interfaces / other
number of electrical connections
● for operator console 0
● for signaling contact 0
● for power supply 2
type of electrical connection
● for power supply 5-pole push-pull connector PRO socket
design of the removable storage
● C-PLUG Yes
product function / device replacement with replacement of the storage medium Yes
supply voltage, current consumption, power loss
type of voltage / 1 / of the supply voltage DC
● supply voltage / 1 / rated value 24 V
● power loss [W] / 1 / rated value 7.7 W
● consumed current / 1 / at rated supply voltage / maximum 0.32 A
● supply voltage / 1 / voltage range 19.2 ... 31.2
● consumed current / 1 / maximum 0.32 A
● type of electrical connection / 1 / for power supply 5-pole push-pull connector PRO socket
● product component / 1 / fusing at power supply input Yes
● fuse protection type / 1 / at input for supply voltage 1.5 A (non-replaceable fuse F)
ambient conditions
ambient temperature
● during operation -40 ... +70 °C
● during storage -40 ... +85 °C
● during transport -40 ... +85 °C
relative humidity
● at 25 °C / without condensation / during operation / maximum 95 %
protection class IP IP65
design, dimensions and weights
design compact
width 185 mm
height 200 mm
depth 63 mm
net weight 1.05 kg
material / of the enclosure Aluminum
fastening method
● wall mounting Yes
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <~0.3~s 50
cascading in cases of star topology any (depending only on signal propagation time)
product function
● QoS according to DSCP Yes
product feature
● Cut Through switching method No
● Store & Forward switching method Yes
product functions / management, configuration, engineering
product function
● CLI Yes
● web-based management Yes
● MIB support Yes
● TRAPs via email Yes
● configuration with STEP 7 Yes
● RMON Yes
● SMTP server No
● port mirroring Yes
● multiport mirroring Yes
● CoS Yes
● with IRT / PROFINET IO switch No
● PROFINET IO diagnosis Yes
● switch-managed Yes
PROFINET conformity class B
network load class / according to PROFINET III
telegram length / for Ethernet / maximum 10240 byte
protocol / is supported
● Telnet Yes
● HTTP Yes
● HTTPS Yes
● TFTP Yes
● SFTP Yes
● BOOTP Yes
● GMRP Yes
● DCP Yes
● LLDP Yes
● EtherNet/IP Yes
● SNMP v1 Yes
● SNMP v2 Yes
● SNMP v3 Yes
● IGMP (snooping/querier) Yes
identification & maintenance function
● I&M0 - device-specific information Yes
● I&M1 - higher level designation/location designation Yes
product functions / diagnostics
product function
● port diagnostics Yes
● statistics Packet Size Yes
● statistics packet type Yes
● error statistics Yes
● SysLog Yes
product functions / VLAN
product function
● VLAN - port based Yes
● VLAN - protocol-based No
● VLAN - IP-based No
number of VLANs / maximum 257
number of VLANs - dynamic / maximum 257
number of VLANs / at ring redundancy (HRP; MRP; standby link) 257
product functions / DHCP
product function
● DHCP server Yes
● DHCP client Yes
● DHCP Option 82 Yes
● DHCP Option 66 Yes
● DHCP Option 67 Yes
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP) Yes
product function
● media redundancy protocol (MRP) with redundancy manager Yes
● Media Redundancy Protocol Interconnection (MRP-I) Yes; LC mode
● of the PROFINET IO device / is supported / H-Sync forwarding Yes
● of the PROFINET IO device / is supported / PROFINET system redundancy Yes
● ring redundancy Yes
● high speed redundancy protocol (HRP) with redundancy manager Yes
● high speed redundancy protocol (HRP) with standby redundancy Yes
● redundancy procedure STP Yes
● redundancy procedure RSTP Yes
● redundancy procedure RSTP+ Yes
● redundancy procedure MSTP Yes
● Parallel Redundancy Protocol (PRP)/operation in the PRP-network Yes
● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) No
● passive listening Yes
protocol / is supported
● LACP Yes
system modification during operation
product function / configuration in RUN via CiR/H-CiR Yes
product functions / security
product function
● IEEE 802.1x (radius) Yes
● RADIUS client Yes
● broadcast/multicast/unicast limiter Yes
● broadcast blocking Yes
protocol / is supported
● SSH Yes
● SSL Yes
product functions / time
product function
● SICLOCK support Yes
● NTP-client Yes
● SNTP client Yes
protocol / is supported
● NTP Yes
● SNTP Yes
● IEEE 1588 profile default Yes
standards, specifications, approvals
certificate of suitability
● CE marking Yes
● UKCA marking Yes
● cULus approval Yes
● KC approval Yes
● Regulatory Compliance Mark (RCM) Yes
standard
● for EMC interference emission EN 61000-6-4 (Class A)
● for immunity to EMC EN 61000-6-2
● for safety / from CSA and UL UL-61010-2 E85972; UL 62368-1 E115352, CSA C22.2 No. 62368-1
standards, specifications, approvals / hazardous environments
certificate of suitability
● ATEX Yes
● UKEX Yes
● IECEx Yes
● FM registration Yes
standards, specifications, approvals / other
certificate of suitability
● RoHS conformity Yes
standards, specifications, approvals / Environmental Product Declaration
Environmental Product Declaration Yes
global warming potential [CO2 eq]
● total 239.626 kg
● during manufacturing 27.2 kg
● during operation 211 kg
● after end of life 0.838 kg
Specifications
| TRANSFER RATE | 10, 100, 1000 Mbit/s |
|---|---|
| PORT | 8; RJ45 |
