SCALANCE XR326-8EEC (Conf. Coating)-6GK5334-2TS00-2ER3

INR 1
datasheet
In stock

Description

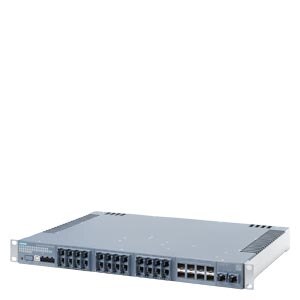

SCALANCE XR326-8EEC; managed layer 2; IE switch, 19" rack; 24x 100/1000 Mbps RJ45 port; 2x 1G/2.5G/5G/10 Gbps RJ45 8x 1G/10G SFP+ port; conformal coating; LED diagnostics; error signaling contact; select/set button; PROFINET IO device; network management; integrated redundancy manager; office features (RSTP, VLAN, IGMP,..); CLP included in scope of supply; power supply 24 V DC;

product type designation

product brand name SCALANCE

product type designation XR326-8EEC

Technical Product Detail Page https://i.siemens.com/1P6GK5334-2TS00-2ER3

transfer rate

transfer rate 10, 100, 1000 Mbit/s

transfer rate 2.5, 5, 10 Gbit/s

interfaces / for communication / integrated

number of electrical connections

● for network components or terminal equipment 26; RJ45

number of 10/100/1000 Mbit/s RJ45 ports

● with securing collar 26

number of 1000/2500/5000/10000 Mbps RJ45 ports / with securing collar 2

number of electrical connections

● for SFP+ 8; 1000 Mbps and 10000 Mbps SFP usable

interfaces / other

number of electrical connections

● for operator console 1

● for signaling contact 1

● for power supply 1

type of electrical connection

● for operator console USB (2.0 type B, USB-to-serial adapter)

● for signaling contact 2-pole terminal block

● for power supply 2 x 2-pole terminal block

design of the removable storage

● CLP Yes

operating voltage / of the signaling contacts

● at AC / rated value 24 V

● at DC / rated value 24 V

operational current / of the signaling contacts

● at DC / maximum 0.1 A

supply voltage, current consumption, power loss

product component / connection for redundant voltage supply Yes

type of voltage supply / redundant power supply unit No

type of voltage / 1 / of the supply voltage DC

● supply voltage / 1 / rated value 24 V

● power loss [W] / 1 / rated value 72 W

● power loss [W] / at DC / at 24 V / typical 43.2 W

● supply voltage / 1 / voltage range 19.2 ... 31.2

● consumed current / 1 / maximum 3 A

● consumed current / at DC / at 24 V / typical 1.8 A

● type of electrical connection / 1 / for power supply 2 x 2-pole terminal block

● product component / 1 / fusing at power supply input Yes

● fuse protection type / 1 / at input for supply voltage F 10 A / 250 V

type of voltage / 2 / of the supply voltage AC (50 / 60 Hz)

● supply voltage / 2 / rated value 24 V

● power loss [W] / 2 / rated value 72 W

● supply voltage / 2 / voltage range 19.2 ... 30

● consumed current / 2 / maximum 3 A

● type of electrical connection / 2 / for power supply 2 x 2-pole terminal block

● fuse protection type / 2 / at input for supply voltage F 10 A / 250 V

ambient conditions

ambient temperature / in horizontal mounting position / during operation -40 ... +70 °C; Starting at -40 °C; The maximum ambient temperature during operation depends on the operating height and the plug-in transceivers, see also manual.

installation altitude / at height above sea level / maximum 4000 m

relative humidity

● at 25 °C / without condensation / during operation / maximum 95 %

operating condition / fanless operation Yes

protection class IP IP20

design, dimensions and weights

design 19-inch rack

number of modular height units / relating to 19-inch cabinet 1

width 446 mm

height 43.6 mm

depth 374.8 mm

net weight 8 kg

product feature / conformal coating Yes

material / of the enclosure metal

fastening method

● 19-inch installation Yes

product features, product functions, product components / general

cascading in the case of a redundant ring / at reconfiguration time of <~0.3~s 50

cascading in cases of star topology any (depending only on signal propagation time)

number of automatically learnable MAC addresses 16382

number of QoS queues / per port 8

product function

● QoS according to IEEE 802.1Q Yes

product feature

● Store & Forward switching method Yes

product functions / management, configuration, engineering

product function

● CLI Yes

● web-based management Yes

● MIB support Yes

● TRAPs via email Yes

● configuration with STEP 7 Yes

● RMON Yes

● SMTP server No

● port mirroring Yes

● multiport mirroring Yes

● Encapsulated Remote Traffic Mirroring (ERTM) Yes

● CoS Yes

● PROFINET IO diagnosis Yes

● switch-managed Yes

PROFINET conformity class B

network load class / according to PROFINET III

telegram length / for Ethernet / maximum 9194 byte

protocol / is supported

● Telnet Yes

● HTTP Yes

● HTTPS Yes

● TFTP Yes

● FTP Yes

● SFTP Yes

● BOOTP No

● NETCONF No

● GMRP Yes

● DCP Yes

● LLDP Yes

● EtherNet/IP Yes

● SNMP v1 Yes

● SNMP v2 Yes

● SNMP v3 Yes

● IGMP (snooping/querier) Yes

identification & maintenance function

● I&M0 - device-specific information Yes

● I&M1 - higher level designation/location designation Yes

product functions / diagnostics

product function

● port diagnostics Yes

● statistics Packet Size Yes

● statistics packet type Yes

● error statistics Yes

● SysLog Yes

product functions / VLAN

product function

● VLAN - port based Yes

● VLAN - protocol-based No

● VLAN - IP-based No

number of VLANs / maximum 257

number of VLANs - dynamic / maximum 257

number of VLANs / at ring redundancy (HRP; MRP; standby link) 257

product function / VXLAN according to RFC 7348 Yes

product functions / DHCP

product function

● DHCP server Yes

● DHCP client Yes

● DHCP Option 82 Yes

● DHCP Option 66 Yes

● DHCP Option 67 Yes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP) Yes

product function

● media redundancy protocol (MRP) with redundancy manager Yes

● Media Redundancy Protocol Interconnection (MRP-I) Yes; LC mode

● of the PROFINET IO device / is supported / H-Sync forwarding Yes

● of the PROFINET IO device / is supported / PROFINET system redundancy Yes

● ring redundancy Yes

● high speed redundancy protocol (HRP) with redundancy manager Yes

● high speed redundancy protocol (HRP) with standby redundancy Yes

● redundancy procedure STP Yes

● redundancy procedure RSTP Yes

● redundancy procedure RSTP+ Yes

● redundancy procedure MSTP Yes

● High-availability Seamless Redundancy (HSR) Yes

● Parallel Redundancy Protocol (PRP)/operation in the PRP-network Yes

● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) Yes

● passive listening Yes

protocol / is supported

● STP/RSTP Yes

● STP Yes

● RSTP Yes

● RSTP big network support Yes

● LACP Yes

system modification during operation

product function / configuration in RUN via CiR/H-CiR Yes

product functions / security

product function

● IEEE 802.1x (radius) Yes

● broadcast/multicast/unicast limiter Yes

● broadcast blocking Yes

protocol / is supported

● SSH Yes

● SSL Yes

product functions / time

product function

● SICLOCK support Yes

● NTP-client Yes

● SNTP client Yes

● IEEE 1588 v2 transparent forwarding Yes

protocol / is supported

● NTP Yes

● SNTP Yes

● IEEE 1588 profile default No

accuracy / at IEEE 1588 v2

● not less than 100 ns

● typical 50 ns

standards, specifications, approvals

certificate of suitability

● CE marking Yes

● UKCA marking Yes

● EC Declaration of Conformity EN 61010, IEC 61010-1, UL 61010A-1 Yes

● cULus approval Yes

● KC approval Yes

● Regulatory Compliance Mark (RCM) Yes

product conformity / according to EMC-guideline 2014/30/EU

standard

● for EMC interference emission EN 61000-6-4

● for immunity to EMC EN 61000-6-2

● for safety / from CSA and UL UL 62368-1, UL 61010 - 2

standards, specifications, approvals / hazardous environments

certificate of suitability

● ATEX Yes

● UKEX Yes

● IECEx Yes

● ULhazloc approval Yes

● CCC / for hazardous zone according to GB standard Yes

● FM registration Yes

standards, specifications, approvals / other

certificate of suitability

● RoHS conformity Yes

resistance to air pollution / conformity according to ANSI/ISA-71.04 Yes; G3

IT security for industrial automation systems / according to IEC 62443-4-2:2019 Yes

Specifications

ethernet rate 10, 100, 1000 Mbit/s
port26; RJ45
