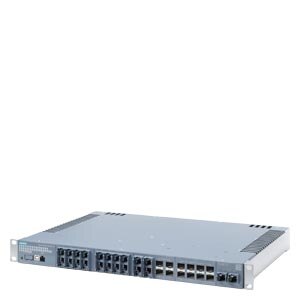

SCALANCE XR522-12; managed layer 3 IE switch, 19" rack; 20x 100/1000 Mbps RJ45 port; 2x 1G/2.5G/5G/10 Gbps RJ45 port 4x 100M/1G SFP port; 8x 1G/10G SFP+ port; LED diagnostics; error signaling contact; select/set button; PROFINET IO device; network management; integrated redundancy manager; office features (RSTP, VLAN, IGMP,..); CLP included in scope of supply; power supply 2x 230 V AC; product type designation product brand name SCALANCE product type designation XR522-12 Technical Product Detail Page https://i.siemens.com/1P6GK5534-3TR00-4AR3 transfer rate transfer rate 10, 100, 1000 Mbit/s transfer rate 2.5, 5, 10 Gbit/s interfaces / for communication / integrated number of electrical connections ● for network components or terminal equipment 22; RJ45 with securing collar number of 10/100/1000 Mbit/s RJ45 ports ● with securing collar 20 number of 1000/2500/5000/10000 Mbps RJ45 ports / with securing collar 2 number of electrical connections ● for SFP 4; 100 Mbps and 1000 Mbps SFP usable ● for SFP+ 8; 1000 Mbps and 10000 Mbps SFP usable interfaces / other number of electrical connections ● for operator console 1 ● for signaling contact 1 ● for power supply 2 type of electrical connection ● for operator console USB (2.0 type B, USB-to-serial adapter) ● for signaling contact 2-pole terminal block ● for power supply IEC plug C14 AC supply or 2-pole terminal block for DC supply design of the removable storage ● CLP Yes operating voltage / of the signaling contacts ● at DC / rated value 24 V operational current / of the signaling contacts ● at DC / maximum 0.1 A supply voltage, current consumption, power loss product component / connection for redundant voltage supply Yes type of voltage supply / redundant power supply unit Yes type of voltage / 1 / of the supply voltage DC ● supply voltage / 1 / rated value 100 V ... 250 V DC ● power loss [W] / 1 / rated value 99 W ● supply voltage / 1 / voltage range 77 ... 300 ● consumed current / 1 / maximum 0.8 A ● type of electrical connection / 1 / for power supply 2-pole terminal block ● product component / 1 / fusing at power supply input Yes ● fuse protection type / 1 / at input for supply voltage F 4 A / 250 V type of voltage / 2 / of the supply voltage AC (50 / 60 Hz) ● supply voltage / 2 / rated value 240 V; 100V ... 240V AC ● power loss [W] / 2 / rated value 99 W ● supply voltage / 2 / voltage range 85 ... 264 ● consumed current / 2 / maximum 0.8 A ● type of electrical connection / 2 / for power supply IEC plug C14 ● fuse protection type / 2 / at input for supply voltage F 4 A / 250 V ambient conditions ambient temperature / in horizontal mounting position / during operation -25 ... +60 °C; Starting at -25 °C; The maximum ambient temperature during operation depends on the operating height and the plug-in transceivers, see also manual. installation altitude / at height above sea level / maximum 3000 m relative humidity ● at 25 °C / without condensation / during operation / maximum 95 % operating condition / fanless operation Yes protection class IP IP20 design, dimensions and weights design 19-inch rack number of modular height units / relating to 19-inch cabinet 1 width 446 mm height 43.6 mm depth 374.8 mm net weight 8.4 kg material / of the enclosure metal fastening method ● 19-inch installation Yes product features, product functions, product components / general cascading in the case of a redundant ring / at reconfiguration time of <~0.3~s 50 cascading in cases of star topology any (depending only on signal propagation time) number of automatically learnable MAC addresses 16382 number of QoS queues / per port 8 product function ● QoS according to IEEE 802.1Q Yes product feature ● Store & Forward switching method Yes product functions / management, configuration, engineering product function ● CLI Yes ● web-based management Yes ● MIB support Yes ● TRAPs via email Yes ● configuration with STEP 7 Yes ● RMON Yes ● port mirroring Yes ● multiport mirroring Yes ● CoS Yes ● PROFINET IO diagnosis Yes ● switch-managed Yes PROFINET conformity class B network load class / according to PROFINET III telegram length / for Ethernet / maximum 9194 byte protocol / is supported ● Telnet Yes ● HTTP Yes ● HTTPS Yes ● TFTP Yes ● FTP Yes ● SFTP Yes ● BOOTP Yes ● NETCONF No ● GMRP Yes ● DCP Yes ● LLDP Yes ● EtherNet/IP Yes ● SNMP v1 Yes ● SNMP v2 Yes ● SNMP v3 Yes ● IGMP (snooping/querier) Yes identification & maintenance function ● I&M0 - device-specific information Yes ● I&M1 - higher level designation/location designation Yes product functions / diagnostics product function ● port diagnostics Yes ● statistics Packet Size Yes ● statistics packet type Yes ● error statistics Yes ● SysLog Yes product functions / VLAN product function ● VLAN - port based Yes ● VLAN - protocol-based No ● VLAN - IP-based No ● VLAN dynamic Yes number of VLANs / maximum 257 number of VLANs - dynamic / maximum 257 number of VLANs / at ring redundancy (HRP; MRP; standby link) 257 product function / VXLAN according to RFC 7348 Yes product functions / DHCP product function ● DHCP server Yes ● DHCP client Yes ● DHCP Option 82 Yes ● DHCP Option 66 Yes ● DHCP Option 67 Yes product functions / routing service / routing / note IP routing integrated product function ● static IP routing Yes ● static IP routing IPv6 No ● dynamic IP routing Yes ● dynamic IP routing IPv6 No protocol / is supported ● RIPv2 Yes ● RIPnG for IPv6 No ● OSPFv2 Yes ● OSPFv3 for IPv6 No ● VRRP Yes ● VRRP for IPv6 No product functions / redundancy protocol / is supported / Media Redundancy Protocol (MRP) Yes product function ● media redundancy protocol (MRP) with redundancy manager Yes ● Media Redundancy Protocol Interconnection (MRP-I) Yes; LC mode ● of the PROFINET IO device / is supported / PROFINET system redundancy Yes ● ring redundancy Yes ● high speed redundancy protocol (HRP) with redundancy manager Yes ● high speed redundancy protocol (HRP) with standby redundancy Yes ● redundancy procedure STP Yes ● redundancy procedure RSTP Yes ● redundancy procedure RSTP+ Yes ● redundancy procedure MSTP Yes ● High-availability Seamless Redundancy (HSR) Yes ● Parallel Redundancy Protocol (PRP)/operation in the PRP-network Yes ● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) Yes ● passive listening Yes protocol / is supported ● LACP Yes system modification during operation product function / configuration in RUN via CiR/H-CiR Yes product functions / security product function ● IEEE 802.1x (radius) Yes ● broadcast/multicast/unicast limiter Yes ● broadcast blocking Yes protocol / is supported ● SSH Yes ● SSL Yes product functions / time product function ● SICLOCK support Yes ● NTP-client Yes ● SNTP client Yes ● IEEE 1588 v2 transparent forwarding Yes protocol / is supported ● NTP Yes ● SNTP Yes accuracy / at IEEE 1588 v2 ● not less than 100 ns ● typical 50 ns standards, specifications, approvals certificate of suitability ● CE marking Yes ● UKCA marking Yes ● EC Declaration of Conformity EN 61010, IEC 61010-1, UL 61010A-1 Yes ● KC approval Yes ● Regulatory Compliance Mark (RCM) Yes product conformity / according to EMC-guideline 2014/30/EU standard ● for EMC interference emission EN 61000-6-4, EN 50121-9 ● for immunity to EMC EN 61000-6-2, EN 50121-4 ● for safety / from CSA and UL UL 62368-1, UL 61010 - 2 standards, specifications, approvals / other certificate of suitability ● railway application in accordance with EN 50121-4 Yes; use only in areas not accessible to the public ● railway application in accordance with EN 50125-3 Yes; Section 4.2: Class AX (up to 2000m); section 4.3: T1: Containers N.T.C and T.C. / Buildings N.C.C and C.C, T2: Containers N.T.C and T.C. / Buildings N.C.C and C.C, TX: Containers N.T.C and T.C. / Buildings N.C.C and C.C., derating according to the manual must be observed when SFP/SFP+ transceivers are used; section 4.4: T1: Containers C.C. / Buildings N.C.C and C.C., T2: Containers C.C. / Buildings N.C.C and C.C, T3: Containers C.C. / Buildings N.C.C and C.C; section 4.11: C1: Indoor, C2: Indoor (except condensation), C3: Indoor (except condensation), 4B1, 4S10, UL 62368-1, UL 61010-2-10; section 4.13: partially, Test Fc: Vibration EN 60068-2-6; IEC 60068-2-6, Test Ea: Shock EN 60068-2-27; IEC 60068-2-27, Test Ec: Rough handling, shocks EN 60068-2-31; IEC 60068-2-31; section 4.14: yes; section 4.15: yes, according to manual. ● RoHS conformity Yes resistance to air pollution / conformity according to ANSI/ISA-71.04 Yes; G3 IT security for industrial automation systems / according to IEC 62443-4-2:2019 Yes standards, specifications, approvals / marine classification certificate of suitability / shipbuilding approval / note Certifications marked 'No' are currently under renewal. Marine classification association ● American Bureau of Shipping Europe Ltd. (ABS) No ● French marine classification society (BV) No ● Chinese Classification Society (CCS) No ● Det Norske Veritas (DNV) No ● Korean Register of Shipping (KRS) No ● Lloyds Register of Shipping (LRS) No ● Nippon Kaiji Kyokai (NK) No ● Polski Rejestr Statkow (PRS) No ● Royal Institution of Naval Architects (RINA) No standards, specifications, approvals / Environmental Product Declaration Environmental Product Declaration Yes global warming potential [CO2 eq] ● total 1274.80999 kg ● during manufacturing 225.96 kg ● during operation 1048 kg ● after end of life 0.85 kg
| TRANSFER RATE | 10, 100, 1000 Mbit/s |
| PORT | 22; RJ45 with securing collar |
