SIMATIC HMI KTP1200 Basic DP - 6AV2123-2MA03-0AX0

INR 1
DATASHEET
In stock

Description

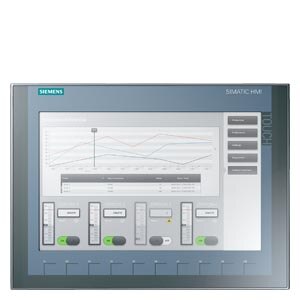

SIMATIC HMI, KTP1200 Basic DP, Basic Panel, Key/touch operation, 12" TFT display, 65536 colors, PROFIBUS interface, configurable as of WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD

General information

Product type designation KTP1200 Basic color DP

Display

Design of display TFT widescreen display, LED backlighting

Screen diagonal 12 in

Display width 261.1 mm

Display height 163.2 mm

Number of colors 65 536

Resolution (pixels)

● Horizontal image resolution 1 280 pixel

● Vertical image resolution 800 pixel

Backlighting

● MTBF backlighting (at 25 °C) 20 000 h

● Backlight dimmable Yes

Control elements

Keyboard

● Function keys

— Number of function keys 10

— Number of function keys with LEDs 0

● Keys with LED No

● System keys No

● Numeric keyboard Yes; Onscreen keyboard

● alphanumeric keyboard Yes; Onscreen keyboard

Touch operation

● Design as touch screen Yes; Analog-resistive

Installation type/mounting

Mounting position vertical

Mounting in portrait format possible Yes

Mounting in landscape format possible Yes

maximum permissible angle of inclination without external ventilation 35°

Supply voltage

Type of supply voltage DC

Rated value (DC) 24 V

permissible range, lower limit (DC) 19.2 V

permissible range, upper limit (DC) 28.8 V

Input current

Current consumption (rated value) 550 mA

Starting current inrush I²t 0.2 A²·s

Power

Active power input, typ. 13.2 W

Processor

Processor type ARM

Storage

Flash Yes

RAM Yes

Memory available for user data 10 Mbyte

Type of output

Acoustics

● Buzzer Yes

● Speaker No

Time of day

Clock

● Hardware clock (real-time) Yes

● Software clock Yes

● retentive Yes; Back-up duration typically 6 weeks

● synchronizable Yes

Interfaces

Number of industrial Ethernet interfaces 0

Number of RS 485 interfaces 1

Number of RS 422 interfaces 1; together with RS 485

Number of RS 232 interfaces 0; with optional adapter

Number of USB interfaces 1; Up to 16 GB

Number of 20 mA interfaces (TTY) 0

Number of parallel interfaces 0

Number of other interfaces 0

Number of SD card slots 0

With software interfaces No

Industrial Ethernet

● Industrial Ethernet status LED 0

Protocols

PROFINET No

PROFINET IO No

IRT No

PROFIBUS Yes

EtherNet/IP No

MPI Yes

Protocols (Ethernet)

● TCP/IP No

● DHCP No

● SNMP No

● DCP No

● LLDP No

WEB characteristics

● HTTP No

● HTML No

Redundancy mode

Media redundancy

— MRP No

Further protocols

● CAN No

● MODBUS Yes; Modicon (MODBUS RTU)

Interrupts/diagnostics/status information

Diagnoses

● Diagnostic information readable No
