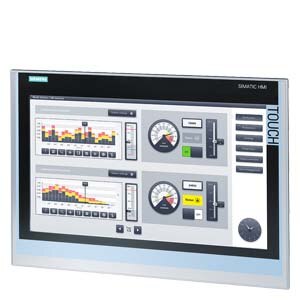

SIMATIC HMI TP1900 Comfort - 6AV2124-0UC02-0AX1

INR 1
DATASHEET
In stock

Description

SIMATIC HMI TP1900 Comfort, Comfort Panel, Touch operation, 19" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 24 MB configuration memory, WEC 2013, configurable from WinCC Comfort V14 SP1 with HSP

Product type designation TP1900 Comfort

Display

Design of display TFT

Screen diagonal 18.5 in

Display width 409.8 mm

Display height 230.4 mm

Number of colors 16 777 216

Resolution (pixels)

● Horizontal image resolution 1 366 pixel

● Vertical image resolution 768 pixel

Backlighting

● MTBF backlighting (at 25 °C) 50 000 h

● Backlight dimmable Yes; 0-100 %

Control elements

Keyboard

● Function keys

— Number of function keys 0

— Number of function keys with LEDs 0

● Keys with LED No

● System keys No

● Numeric keyboard Yes; Onscreen keyboard

● alphanumeric keyboard Yes; Onscreen keyboard

Touch operation

● Design as touch screen Yes; Analog-resistive

Expansions for operator control of the process

● Direct keys (touch buttons as S7 input I/O) 40

Installation type/mounting

Mounting position vertical

Mounting in portrait format possible Yes

Mounting in landscape format possible Yes

maximum permissible angle of inclination without external ventilation 35°

Supply voltage

Type of supply voltage DC

Rated value (DC) 24 V

permissible range, lower limit (DC) 19.2 V

permissible range, upper limit (DC) 28.8 V

Input current

Current consumption (rated value) 1.7 A

Starting current inrush I²t 0.5 A²·s

Power

Active power input, typ. 41 W

Processor

Processor type X86

Storage

Flash Yes

RAM Yes

Memory available for user data 24 Mbyte

Type of output

Info LED No

Power LED No

Error LED No

Acoustics

● Buzzer No

● Speaker Yes

Time of day

Clock

● Hardware clock (real-time) Yes

● Software clock Yes

● retentive Yes; Back-up duration typically 6 weeks

● synchronizable Yes

Interfaces

Number of industrial Ethernet interfaces 2; 2 ports (switch) + independent port

Number of RS 485 interfaces 1; RS 422 / 485 combined

Number of RS 422 interfaces 0; together with RS 485

Number of RS 232 interfaces 0

Number of USB interfaces 2; USB 2.0

Number of 20 mA interfaces (TTY) 0

Number of parallel interfaces 0

Number of SD card slots 2

With software interfaces No

Industrial Ethernet

● Industrial Ethernet status LED 3

● Number of ports of the integrated switch 2

Protocols

PROFINET Yes

PROFINET IO Yes

IRT Yes

PROFIBUS Yes

EtherNet/IP Yes

MPI Yes

Protocols (Ethernet)

● TCP/IP Yes

● DHCP Yes

● SNMP Yes

● DCP Yes

● LLDP Yes

WEB characteristics

● HTTP Yes

● HTTPS Yes

● HTML Yes

● XML Yes

● CSS Yes

● Active X Yes

● JavaScript Yes

● Java VM No

Redundancy mode

Media redundancy

— MRP Yes

Further protocols

● CAN No

● MODBUS Yes

Interrupts/diagnostics/status information

Diagnoses

● Diagnostic information readable Yes; S7 controller

EMC

Emission of radio interference acc. to EN 55 011

● Limit class A, for use in industrial areas Yes

● Limit class B, for use in residential areas No

Degree and class of protection

IP (at the front) IP65

IP (rear) IP20

NEMA (front)

● Enclosure Type 4 at the front Yes

● Enclosure Type 4x at the front Yes

Standards, approvals, certificates

CE mark Yes

cULus Yes

RCM (formerly C-TICK) Yes

KC approval Yes

EAC (formerly Gost-R) Yes

Use in hazardous areas

● ATEX Zone 2 Yes

● ATEX Zone 22 Yes

● IECEx Zone 2 Yes

● IECEx Zone 22 Yes

● cULus Class I Zone 1 No

● cULus Class I Zone 2, Division 2 Yes; for inscription on device rating plate

● cULus Class II Division 2 No; in preparation

● FM Class I Division 2 Yes; for inscription on device rating plate

● FM Class II Division 2 No; in preparation

Marine approval

● Germanischer Lloyd (GL) No

● American Bureau of Shipping (ABS) No

● Bureau Veritas (BV) No

● Det Norske Veritas (DNV) No

● Korean Register of Shipping (KRS) No

● Lloyds Register of Shipping (LRS) No

● Nippon Kaiji Kyokai (Class NK) No

● Polski Rejestr Statkow (PRS) No

● Chinese Classification Society (CCS) No
