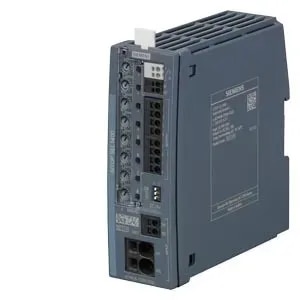

6EP44387FC003DX0 SITOP SEL1200 EX 10A selectivity module 8-channel switching characteristic input: 24 V DC/60 A output: 24 V DC/8 x 10 A threshold adjustable 2-10 A with monitoring interface input type of the power supply network Controlled DC voltage supply voltage at DC rated value 24 V input voltage at DC 20.4 ... 30 V overvoltage overload capability 35 V input current at rated input voltage 24 V rated value 60 A output voltage curve at output controlled DC voltage formula for output voltage Vin - approx. 0.2 V relative overall tolerance of the voltage note In accordance with the supplying input voltage number of outputs 8 output current up to 60 °C per output rated value 10 A; +60 ... +70 °C: Derating 2%/K adjustable current response value current of the current-dependent overload release 2 ... 10 A type of response value setting via potentiometer response delay maximum 5 s product feature parallel switching of outputs Yes type of outputs connection switch-on of all outputs after power-up of the supply voltage > 20 V, delay time of 25 ms, 200 ms, 500 ms, or “load-optimized” via DIP switch configurable for sequential switch-on

6EP44377EB003CX0 SITOP SEL1400 10 A selectivity module 4-channel with limiting characteristic input: 24 V DC/40 A output: 24 V DC/4x 10 A threshold adjustable 2-10 A with monitoring interface input type of the power supply network Controlled DC voltage supply voltage at DC rated value 24 V input voltage at DC 20.4 ... 30 V overvoltage overload capability 35 V input current at rated input voltage 24 V rated value 40 A output voltage curve at output controlled DC voltage formula for output voltage Vin - approx. 0.2 V relative overall tolerance of the voltage note In accordance with the supplying input voltage number of outputs 4 output current up to 60 °C per output rated value 10 A; +60 ... +70 °C: Derating 2%/K adjustable current response value current of the current-dependent overload release 2 ... 10 A type of response value setting via potentiometer response delay maximum 5 s product feature parallel switching of outputs Yes type of outputs connection switch-on of all outputs after power-up of the supply voltage > 20 V, delay time of 25 ms, 200 ms, 500 ms, or “load-optimized” via DIP switch configurable for sequential switch-on

6EP44387EB003DX0 SITOP SEL1400 10 A selectivity module 8-channel with limiting characteristic input: 24 V DC/60 A output: 24 V DC/8x 10 A threshold adjustable 2-10 A with monitoring interface input type of the power supply network Controlled DC voltage supply voltage at DC rated value 24 V input voltage at DC 20.4 ... 30 V overvoltage overload capability 35 V input current at rated input voltage 24 V rated value 60 A output voltage curve at output controlled DC voltage formula for output voltage Vin - approx. 0.2 V relative overall tolerance of the voltage note In accordance with the supplying input voltage number of outputs 8 output current up to 60 °C per output rated value 10 A; +60 ... +70 °C: Derating 2%/K adjustable current response value current of the current-dependent overload release 2 ... 10 A type of response value setting via potentiometer response delay maximum 5 s product feature parallel switching of outputs Yes type of outputs connection switch-on of all outputs after power-up of the supply voltage > 20 V, delay time of 25 ms, 200 ms, 500 ms, or “load-optimized” via DIP switch configurable for sequential switch-on

6EP44387EC003DX0 SITOP SEL1400 EX 10 A selectivity module 8-channel with limiting characteristic input: 24 V DC/60 A output: 24 V DC/8x 10 A threshold adjustable 2-10 A with monitoring interface input type of the power supply network Controlled DC voltage supply voltage at DC rated value 24 V input voltage at DC 20.4 ... 30 V overvoltage overload capability 35 V input current at rated input voltage 24 V rated value 60 A output voltage curve at output controlled DC voltage formula for output voltage Vin - approx. 0.2 V relative overall tolerance of the voltage note In accordance with the supplying input voltage number of outputs 8 output current up to 60 °C per output rated value 10 A; +60 ... +70 °C: Derating 2%/K adjustable current response value current of the current-dependent overload release 2 ... 10 A type of response value setting via potentiometer response delay maximum 5 s product feature parallel switching of outputs Yes type of outputs connection switch-on of all outputs after power-up of the supply voltage > 20 V, delay time of 25 ms, 200 ms, 500 ms, or “load-optimized” via DIP switch configurable for sequential switch-on

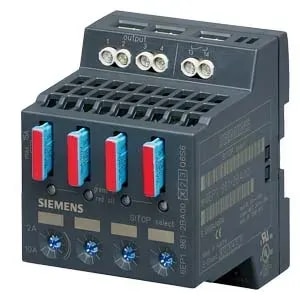

SITOP SELECT/diagnosis module/4X2-10A 6EP19612BA00- SITOP select diagnostics module 4-channel input: 24 V DC/40 A output: 24 V DC/4x 10 A threshold adjustable 2-10 A input type of the power supply network Controlled DC voltage (SITOP select is not designed for operation with DC UPS module 40 A (6EP1 931-2FC21/-2FC42) supply voltage at DC rated value 24 V input voltage at DC 22 ... 30 V overvoltage overload capability 35 V; 100 ms input current at rated input voltage 24 V rated value 40 A output voltage curve at output-controlled DC voltage formula for output voltage Vin - approx. 0.3 V relative overall tolerance of the voltage note In accordance with the supplying input voltage number of outputs 4 output current up to 60 °C per output rated value 10 A adjustable current response value current of the current-dependent overload release 2 ... 10 A type of response value setting via potentiometer response delay maximum 5 s product feature parallel switching of outputs No type of outputs connection Simultaneous connection of all outputs after power up of the supply voltage, delay time of 24 ms or 100 ms programmable for sequential connection
