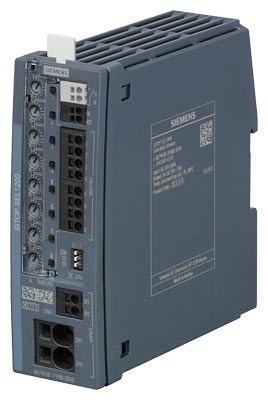

6EP44387FC003DX0 SITOP SEL1200 EX 10A selectivity module 8-channel switching characteristic input: 24 V DC/60 A output: 24 V DC/8 x 10 A threshold adjustable 2-10 A with monitoring interface input type of the power supply network Controlled DC voltage supply voltage at DC rated value 24 V input voltage at DC 20.4 ... 30 V overvoltage overload capability 35 V input current at rated input voltage 24 V rated value 60 A output voltage curve at output controlled DC voltage formula for output voltage Vin - approx. 0.2 V relative overall tolerance of the voltage note In accordance with the supplying input voltage number of outputs 8 output current up to 60 °C per output rated value 10 A; +60 ... +70 °C: Derating 2%/K adjustable current response value current of the current-dependent overload release 2 ... 10 A type of response value setting via potentiometer response delay maximum 5 s product feature parallel switching of outputs Yes type of outputs connection switch-on of all outputs after power-up of the supply voltage > 20 V, delay time of 25 ms, 200 ms, 500 ms, or “load-optimized” via DIP switch configurable for sequential switch-on

6EP44377EB003CX0 SITOP SEL1400 10 A selectivity module 4-channel with limiting characteristic input: 24 V DC/40 A output: 24 V DC/4x 10 A threshold adjustable 2-10 A with monitoring interface input type of the power supply network Controlled DC voltage supply voltage at DC rated value 24 V input voltage at DC 20.4 ... 30 V overvoltage overload capability 35 V input current at rated input voltage 24 V rated value 40 A output voltage curve at output controlled DC voltage formula for output voltage Vin - approx. 0.2 V relative overall tolerance of the voltage note In accordance with the supplying input voltage number of outputs 4 output current up to 60 °C per output rated value 10 A; +60 ... +70 °C: Derating 2%/K adjustable current response value current of the current-dependent overload release 2 ... 10 A type of response value setting via potentiometer response delay maximum 5 s product feature parallel switching of outputs Yes type of outputs connection switch-on of all outputs after power-up of the supply voltage > 20 V, delay time of 25 ms, 200 ms, 500 ms, or “load-optimized” via DIP switch configurable for sequential switch-on

6EP44387EB003DX0 SITOP SEL1400 10 A selectivity module 8-channel with limiting characteristic input: 24 V DC/60 A output: 24 V DC/8x 10 A threshold adjustable 2-10 A with monitoring interface input type of the power supply network Controlled DC voltage supply voltage at DC rated value 24 V input voltage at DC 20.4 ... 30 V overvoltage overload capability 35 V input current at rated input voltage 24 V rated value 60 A output voltage curve at output controlled DC voltage formula for output voltage Vin - approx. 0.2 V relative overall tolerance of the voltage note In accordance with the supplying input voltage number of outputs 8 output current up to 60 °C per output rated value 10 A; +60 ... +70 °C: Derating 2%/K adjustable current response value current of the current-dependent overload release 2 ... 10 A type of response value setting via potentiometer response delay maximum 5 s product feature parallel switching of outputs Yes type of outputs connection switch-on of all outputs after power-up of the supply voltage > 20 V, delay time of 25 ms, 200 ms, 500 ms, or “load-optimized” via DIP switch configurable for sequential switch-on
