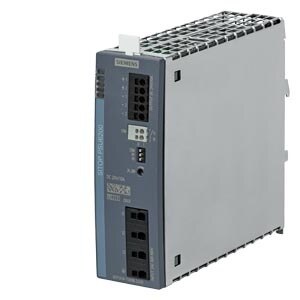

POWER SUPPLY-SITOP PSU6200/3AC/24VDC/10A-6EP34347SB003AX0 SITOP PSU6200 24 V/10 A stabilized power supply input: 400 - 500 V AC output: 24 V DC/10 A with diagnostics interface INPUT type of the power supply network 3-phase AC or DC supply voltage at AC ● minimum rated value 400 V ● maximum rated value 500 V ● initial value 323 V ● full-scale value 576 V supply voltage at DC 500 ... 550 V input voltage at DC 450 ... 600 V buffering time for rated value of the output current in the event of power failure minimum 30 ms operating condition of the mains buffering at Vin = 400 V line frequency 50/60 Hz line frequency 47 ... 63 Hz input current ● at rated input voltage 400 V 0.39 A ● at rated input voltage 500 V 0.32 A current limitation of inrush current at 25 °C maximum 13 A fuse protection type in the feeder three-poled coupled circuit breaker from 4 A characteristic C to 16 A characteristic C or circuit breaker 3RV2011-1EA10 (setting 4 A) or 3RV2711-1ED10 (UL 489) output voltage curve at output Controlled, isolated DC voltage number of outputs 1 output voltage at DC rated value 24 V output voltage ● at output 1 at DC rated value 24 V output voltage adjustable Yes; via potentiometer adjustable output voltage 24 ... 28 V; max. 240 W (288 W up to 45°C) relative overall tolerance of the voltage 3 % relative control precision of the output voltage ● on slow fluctuation of input voltage 0.2 % ● on slow fluctuation of ohm loading 0.1 % residual ripple ● maximum 30 mV ● typical 20 mV voltage peak ● maximum 30 mV ● typical 20 mV display version for normal operation Green LED for 24 V OK type of signal at output Electronic contact (NO contact, contact rating 30 V DC/0.1 A) for DC O.K. or diagnostic interface behavior of the output voltage when switching on Overshoot of Vout < 2 % response delay maximum 0.5 s voltage increase time of the output voltage ● typical 100 ms output current ● rated value 10 A ● rated range 0 ... 10 A; 12 A up to +45°C; +60 ... +70 °C: Derating 3%/K supplied active power typical 240 W short-term overload current ● on short-circuiting during the start-up typical 12 A ● at short-circuit during operation typical 12 A parallel switching of outputs can be set with DIP switch bridging of equipment Yes; switchable characteristic number of parallel-switched equipment resources for increasing the power 2
