S7-1200 G2 by siemens

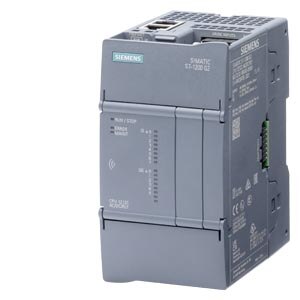

CPU 1212FC ,DC/DC/RLY, 8DI/6DO-6ES7212-1HF50-0XB0

INR 1
Learn more
In stock

Description

SIMATIC S7-1200 G2: failsafe compact CPU 1212FC DC/DC/RLY; power supply: DC 20.4-28.8 V DC; onboard I/O: 8x DI 24 V DC; 6 DO relay 2 A; memory: program 200 KB data: 500 KB, retentivity: 20 KB

General information

Product type designation CPU 1212FC DC/DC/Relay

Firmware version V4.1

● FW update possible Yes

Product function

● I&M data Yes; I&M0 to I&M3

● Isochronous mode Yes; For PROFINET only

● SysLog Yes

Engineering with

● Programming package STEP 7 V21 or higher

Supply voltage

Rated value (DC)

● 24 V DC Yes

permissible range, lower limit (DC) 20.4 V

permissible range, upper limit (DC) 28.8 V

Reverse polarity protection Yes

Input current

Current consumption (rated value) 185 mA; CPU only

Current consumption, max. 765 mA; CPU with all expansion modules

Inrush current, max. 12 A; at 28.8 V DC

I²t 0.5 A²·s

Output current

for backplane bus (5 V DC), max. 1 000 mA; Max. 5 V DC for SM and CM

Encoder supply

24 V encoder supply

● 24 V Yes; L+ minus 4 V DC min.

● Short-circuit protection Yes

● Output current, max. 300 mA

Power loss

Power loss, typ. 3 W

Storage

Work memory

● Integrated 700 kbyte

● integrated (for program) 200 kbyte

● integrated (for data) 500 kbyte

Load memory

● Integrated 8 Mbyte

● Plug-in (SIMATIC Memory Card), max. 32 Gbyte; with SIMATIC memory card

Backup

● present Yes

● maintenance-free Yes

● without battery Yes

CPU processing times

for bit operations, typ. 37 ns; / instruction

for word operations, typ. 30 ns; / instruction

for floating point arithmetic, typ. 74 ns; / instruction

CPU-blocks

Number of elements (total) 4 000; Blocks (OB, FB, FC, DB) and UDTs

OB

● Number of free cycle OBs 100

● Number of time alarm OBs 20

● Number of delay alarm OBs 20

● Number of cyclic interrupt OBs 20; with minimum OB 3x cycle of 1 ms

● Number of process alarm OBs 50

● Number of DPV1 alarm OBs 3

● Number of isochronous mode OBs 1

● Number of startup OBs 100

● Number of asynchronous error OBs 4

● Number of synchronous error OBs 2

● Number of diagnostic alarm OBs 1

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max. 20 kbyte

Flag

● Size, max. 8 kbyte; Size of bit memory address area

Local data

● per priority class, max. 64 kbyte; max. 16 KB per block

Address area

I/O address area

● Inputs 1 kbyte; All inputs are in the process image

● Outputs 1 kbyte; All outputs are in the process image

Process image

● Inputs, adjustable 1 kbyte

● Outputs, adjustable 1 kbyte

Hardware configuration

Number of modules per system, max. 6

● number of expansion boards (SB, CB, BB) 1

● number of signal modules (SM) 6; depends on the number of CMs

● number of communications modules (CM) 3

Time of day

Clock

● Hardware clock (real-time) Yes

● Backup time 480 h; Typical

● Deviation per day, max. 2 s; at 25 °C

Clock synchronization

● on Ethernet via NTP Yes

Digital inputs

Number of digital inputs 8; Integrated

● of which inputs usable for technological functions 8; HSC (High Speed Counting)

Sourcing/sinking input Yes

Number of simultaneously controllable inputs

all mounting positions

— up to 40 °C, max. 8

Input voltage

● Rated value (DC) 24 V

● for signal “0” 5 V DC or 0.5 mA

● for signal “1” 15 V DC at 2.5 mA

Input delay (for rated value of input voltage)

for standard inputs

— parameterizable 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms

— at “0” to “1”, min. 0.1 µs

— at “0” to “1”, max. 20 µs

for interrupt inputs

— Parameterizable Yes

for technological functions

— Parameterizable single phase: 6 HSCs @ 100 kHz & 2 standard @ 30 kHz, quadrature phase: 6 HSCs @ 80 kHz & 2 standard @ 20 kHz

Cable length

● shielded, max. 500 m; 50 m for technological functions

● unshielded, max. 300 m; for technological functions: No

Digital outputs

Number of digital outputs 6; Relays

Switching capacity of the outputs

● with resistive load, max. 2 A

● on lamp load, max. 30 W with DC, 200 W with AC

Output delay with resistive load

● “0” to “1”, max. 10 ms; max.

● “1” to “0”, max. 10 ms; max.

Switching frequency

● of the pulse outputs, with resistive load, max. Not recommended

Relay outputs

● Number of relay outputs 6

● Number of operating cycles, max. mechanically 10 million, at rated load voltage 100 000

Cable length

● shielded, max. 500 m

● unshielded, max. 150 m

Analog inputs

Number of analog inputs 0

Analog outputs

Number of analog outputs 0

Encoder

Connectable encoders

● 2-wire sensor Yes

Interfaces

Number of PROFINET interfaces 1

1. Interface

Interface type PROFINET

Isolated Yes

automatic detection of transmission rate Yes

Autonegotiation Yes

Autocrossing Yes

Interface types

● RJ 45 (Ethernet) Yes; X1

— Transmission rate, max. 100 Mbit/s

● Number of ports 2

● integrated switch Yes

Protocols

● IP protocol Yes; IPv4

● PROFINET IO Controller Yes

● PROFINET IO device Yes
