S7-1200 G2 by SIEMENS

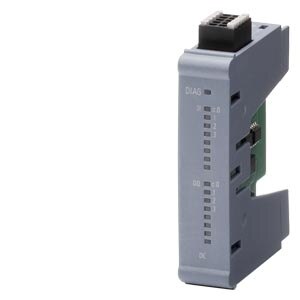

SB 1231 Signal Board, 4AI - SB 1231 Signal Board, 4AI

INR 1
DATASHEET
In stock

Description

SIMATIC S7-1200 G2: SB 1231 analog input, 4 AI; inputs: 4 x AI 14 bit ADC (+/-10 V, +/-5 V, +/-2.5 V or 0-20 mA/4-20 mA)

General information

Product type designation SB 1231, AI 4x 14 bit

Supply voltage

Rated value (DC) 24 V

permissible range, lower limit (DC) 20.4 V

permissible range, upper limit (DC) 28.8 V

Input current

Current consumption, typ. 30 mA

from backplane bus 5 V DC, typ. 28 mA

Power loss

Power loss, typ. 1.4 W

Analog inputs

Number of analog inputs 4; Current or voltage differential inputs

permissible input voltage for voltage input (destruction limit), max. 35 V

permissible input current for current input (destruction limit), max. 40 mA

Cycle time (all channels) max. 0.625 ms; at 400 Hz rejection

Input ranges

● Voltage Yes; ±10V, ±5V, ±2.5V

● Current Yes; 4 to 20 mA, 0 to 20 mA

● Thermocouple No

● Resistance thermometer No

● Resistance No

Input ranges (rated values), voltages

● -10 V to +10 V Yes

— Input resistance (-10 V to +10 V) ≥1 MOhm

● -2.5 V to +2.5 V Yes

— Input resistance (-2.5 V to +2.5 V) ≥1 MOhm

● -5 V to +5 V Yes

— Input resistance (-5 V to +5 V) ≥1 MOhm

Input ranges (rated values), currents

● 0 to 20 mA Yes

— Input resistance (0 to 20 mA) < 290 Ω, > 270 Ω

● 4 mA to 20 mA Yes

— Input resistance (4 mA to 20 mA) < 290 Ω, > 270 Ω

Cable length

● shielded, max. 100 m; shielded, twisted pair

Analog value generation for the inputs

Measurement principle successive approximation

Integration and conversion time/resolution per channel

● Resolution with overrange (bit including sign), max. 13 bit; + sign

● Integration time, parameterizable Yes

● Interference voltage suppression for interference frequency f1 in Hz 40 dB, DC to 60 Hz

Smoothing of measured values

● Parameterizable Yes

● Step: None Yes

● Step: low Yes

● Step: Medium Yes

● Step: High Yes

Errors/accuracies

Temperature error (relative to input range), (+/-) 25 °C ±0.1 % / -20 °C to 60 °C ±0.2 % of the full-scale deflection

Basic error limit (operational limit at 25 °C)

● Voltage, relative to input range, (+/-) 0.1 %

● Current, relative to input range, (+/-) 0.1 %

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

● Common mode voltage, max. 12 V

Interrupts/diagnostics/status information

Diagnostics function Yes

Alarms

● Diagnostic alarm Yes

Diagnoses

● Monitoring the supply voltage Yes

● Wire break Yes

Diagnostics indication LED

● DIAG LED Yes

● for status of the inputs Yes

Standards, approvals, certificates

Siemens Eco Profile (SEP) Siemens EcoTech

CE mark Yes

CSA approval No

UL approval Yes

cULus Yes

FM approval No

RCM (formerly C-TICK) Yes

KC approval Yes

Marine approval No

Ecological footprint

● environmental product declaration Yes; type 2 acc. to ISO 14021

Global warming potential

— global warming potential, (total) [CO2 eq] 16.6 kg

— global warming potential, (during production) [CO2 eq] 3.51 kg

— global warming potential, (during operation) [CO2 eq] 13.3 kg

— global warming potential, (after end of life cycle) [CO2 eq] -0.257 kg

Ambient conditions

Free fall

● Fall height, max. 0.3 m; five times, in product package

Ambient temperature during operation

● min. -20 °C

● max. 40 °C; at max. voltages and max. specifications

● horizontal installation, min. -20 °C

● horizontal installation, max. 60 °C; at rated voltages, 50 % of max. specification and alternate IO active

● vertical installation, min. -20 °C

● vertical installation, max. 50 °C; at rated voltages, 50 % of max. specification and alternate IO active

Ambient temperature during storage/transportation

● min. -40 °C

● max. 70 °C

Air pressure acc. to IEC 60068-2-13

● Operation, min. 540 hPa

● Operation, max. 1 140 hPa

● Storage/transport, min. 540 hPa

● Storage/transport, max. 1 140 hPa

Altitude during operation relating to sea level

● Installation altitude, min. -1 000 m

● Installation altitude, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Relative humidity

● Operation at 25 ℃ without condensation, max. 95 %

Vibrations

● Vibration resistance during operation acc. to IEC 60068-2-6 3.5 mm from 5 - 8.4 Hz, 1g from 8.4 - 150 Hz

● Operation, tested according to IEC 60068-2-6 Yes

Shock testing

● tested according to IEC 60068-2-27 Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms

Pollutant concentrations

● SO2 at RH < 60% without condensation S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free

Connection method

required front connector No

Mechanics/material

Enclosure material (front)

● plastic Yes

Dimensions

Width 15 mm

Height 62 mm

Depth 63 mm

Weights

Weight, approx. 30 g
